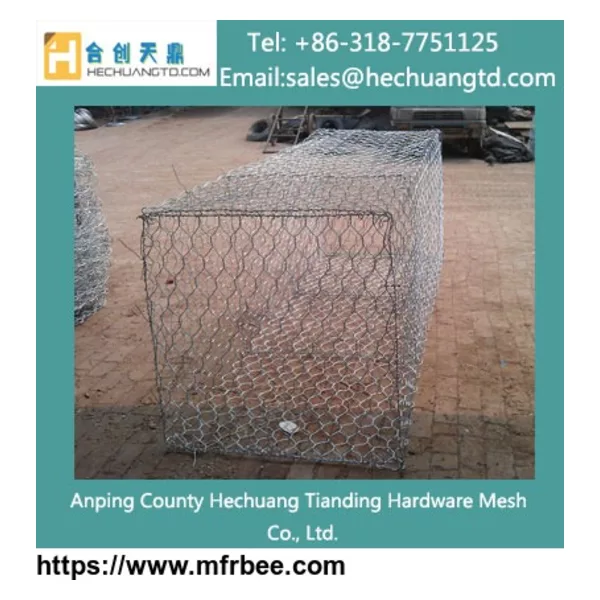

PVC Coated Gabion Box

We manufacture and sell Gabion Box made from double twisted hexagonal gabion wire mesh.

Gabion Box sizes:

• 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m or as per your request.
• Gabion Box wire surface treatment can be Zinc, Galfan or PVC coating as per ASTM A 641 & ASTM A 975.
• Mesh type 8x10. The nominal mesh opening D =3.25 in. (83 mm)
• Mesh type 6x8. The nominal mesh opening D =2.5 in. ( 64 mm)

Gabion Box applications:

• Control and guide of water or flood
• Flood bank or guiding bank
• Preventing rock falling
• Bridge protection
• Strengthening structure of soil
• Protection of seaside area

Surface Treatment	Mesh Size	Mesh Wire mm	Selvedge Wire mm	Lacing Wire mm
Heavy Hot dipped galvanized or golfan galvanized and PVC coating	60×80	2.0mm/3.0mm 2.2mm/3.2mm	2.8mm/3.8mm 3.0mm/4.0mm	2.8mm/2.0mm 2.0mm/3.0mm
80×100	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm
100×120	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm
120×150	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm

Configuration Characteristic:

1. Great Perviousness: keep the hillside and the seaside steady.
2. Great Pliability: No connection aperture and to be provided with tractility.
3. Great Anti-corrosion: The heavy galvanized surface and PVC/PE coated are able to against the corrosion strongly.
4. Resist the scour: to be suitable for seaside and slope defend project.
5. Holistic capability: The cages are perfect to others, it doesn't leave the aperture when constructed in the huge quantity.
6. Easy to Construct: Don't need water, concrete with moulding board, no need electric power also.
7. Application Better: easy to pack and load. It could be packed according to the design requests. Such as according to the shape of Hillside, Shore & bench, and Dike.
8. Economical: use local stone, not need any concrete.
9. Keep entironment: the stone should be filled with soil finally (contrived or natural).

The plant can grow in it. So it could keep the water and soil very well, and beautify the entironment.
