Welded Gabion is made of welded wire mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick,
corrosion-resistant layer of zinc.
The wire is also available with a tough, durable pvc coating. Welded gabion could be used for prefilled on site construction which is quick and easy. They have a variety of applications
such as retaining walls for commercial, industrial and road project, landscaping, erosion control.
|
Material
|
Low Carbon Steel Wire / Galvanized Steel Wire
|
|
Surface Treatment
|
Zinc Coated Welded Gabion
|
|
PVC Coated Welded Gabion
|
|
Galfan Coated Welded Gabion
|
|
ASTM Standard
|
ASTM A 856
|
|
ASTM A 641
|
|
Welded Gabion
|
|
|
Wire Diameter
|
2.7-5.0mm
|
|
|
Mesh Opening
|
50 x 50mm
|
75 x 75mm
|
100 x 100mm
|
50*120mm
|
|
Dimension
|
1m x 1m x 1m
|
2m x 1m x 1m
|
3m x 1m x 1m
|
3m x 1m x 1m
|
Advantage:
- Easy to install
- High zinc coating thus anti-rust and anit-corrosive
- Low cost
- High security
- Colorful stones and shells etc can be used with gabion mesh to make beautiful appearance
- Can be made into various shapes for decoration
How to install welded Welded Gabion?
- Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.

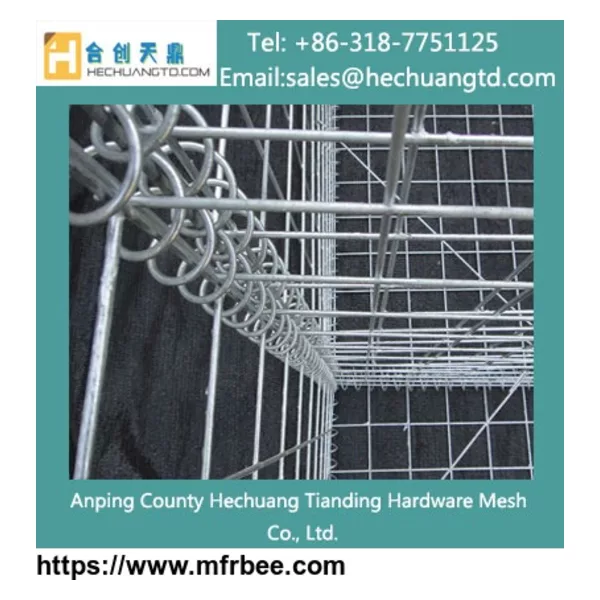

- Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
- Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are
needed in interior cells.
- Step 4. Welded gabion box filled with graded stone by hand or with a shovel.
- Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
- Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up
