GUVV-S10SD UV-A Sensor
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- South Korea
- Brand Name
- Genicom
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
1. UV Sensor
Indium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Curren
2. UV Sensor GUVV-S10SD Applications
UV-A Lamp Monitoring

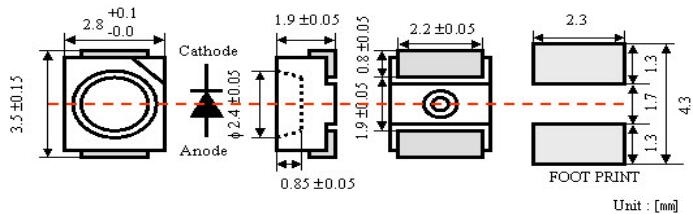

3. UV Sensor GUVV-S10SD Outline Diagrams and Dimensions
4. UV Sensor GUVV-S10SD Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 2V
Forward Current: 1mA
Optical Source Power Range: 0.1~100000 µW/cm2
Soldering Temperature: 260℃
5. UV Sensor GUVV-S10SD Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 181nA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.18A/W
Spectral Detection Range: 240~395nm
Active area: 0.076mm2
