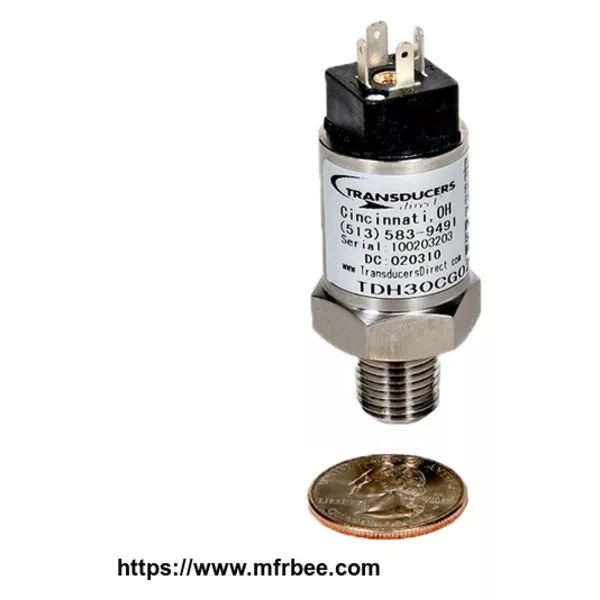

The TDH30 Series Low Cost OEM Pressure Transducer
DESCRIPTION
The TDH30 Series Pressure Transducer utilizes piezoresistance technology in an all stainless steel body. It is compact in size, has long term stability, ease of installation and is very economical as well as reliable.
The TDH30 sets a new price-performance standard for low cost, high volume commercial and industrial applications.
APPLICATIONS
• Hydraulic / Mobile Hydraulic
• Pneumatic Systems
• Food and Beverage Industry
• Refrigeration Systems
• Pumps and Compressors
• Energy and water management
• Construction and Agricultural Equipment
FEATURES
• 3 to 10,000 psi Range
• Various Outputs
• Compact Design
• 316 Stainless steel Housing
• Low Cost
• Industrial 1% Accuracy
• Custom Outputs and Ranges Available
• OEM Tested and Approved
• Low power consumption
SPECIFICATIONS
Input | |
Supply Voltage | 12-36 VDC |
Pressure Range | 3 to 10,000 psi |
Proof Pressure | 1.5 x full scale |
Burst Pressure | 3 x full scale |
Fatigue Life | More than 4 million cycles |
Performance @ 25°C (77°F) | |
Accuracy | 1% full scale, BFSL |
Stability | 0.2% full scale |
Compensated Temperatures | -10 to 75°C (14 to 167°F) |
Operating Temperatures | -20 to 80°C (-4 to 176°F) |
Zero and Span Offset Tolerance | 1.5% |
Current Consumption | Approx 3mA for voltage output, 22mA for current output (4-20mA) |
Shock | 50g, 11ms, 1/2 sine |
Vibration | 11g peak From 10 to 400Hz |
Mechanical Configuration | |
Pressure Port | 1/4 NPT (standard) |
Electrical Connection | 9.4 mini DIN, 3 pin Packard |
Ingress Rating | IP65 with T-Direct standard 9.4 DIN cable, IP66 with T-Direct standard Packard cable |
Housing | 316 stainless steel |
Diaphragm Mateial | 3-75psi =316 SS, >75-1600psi =ceramic, >1600-10,000 =17-4 SS 316SS is available instead of ceramic upon request |
Sealing Material | Neoprene |
Approvals | CE |
