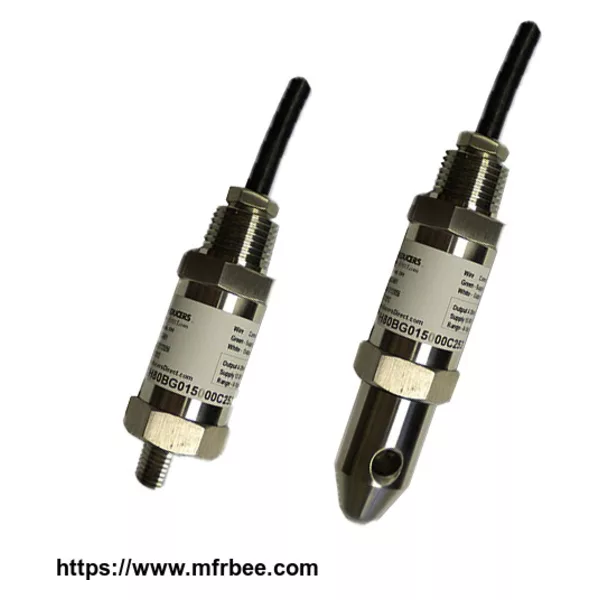

TDH80 Series Low Cost Submersible Pressure Transducer
Product Quick Detail
- Minimum Order
- 1
- Brand Name
- Transducers Direct
- Place Of Origin
- United States
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
The Low Cost TDH80 series Submersible Pressure Transducer.
FEATURES
• Advanced piezoresistance technology
• All stainless steel construction
• Industry-standard 4-20mA output
• Pressure ranges 0-2.5, 0-10 and 0-15 PSIG (custom ranges available)
• Accuracy of 0.5%
• Long-term stability
• Nose cone or NPT thread available
SPECIFICATIONS
| Performance @ 25°C (77°F) | |
| Accuracy | ±0.5% FS |
| Stability | <�±0.2% FS/year, typical |
| Over pressure protection | 1.5X Rated Pressure |
| Burst Pressure | 3X minimum |
| Pressure Cycles | >4 Million |
| Environmental Data | |
| Operating temp | -20 to +80°C (-40 to +176°F) |
| Compensated range | -10 to 75°C (+14 to +167°F) |
| Electrical Data | |
| Excitation | 12-36 Vdc |
| Loop resistance @ 24 Vdc | ≤750 Ohm |
| Zero offset | <�±1.0% of FS |
| Span tolerance | <�±1.0% of FS |
| Physical data | |
| Diaphragm material | 316SS |
| Sealing material | Fluoro Rubber |
| Body material | 316SS |
| Cable pull strength | 300 lb. |
| Pressure connection | Bullet-Nose, 1/4”NPT |
| Electrical Connection | Molded, vented submersible cable (Polyethylene outer jacket) |
