GVBL-S12SD UV / Visible Sensor

1.GVBL-S12SD UV / Visible Sensor Features

SMD3528 with Si-encapsulant

Indium Gallium Nitride Based Material

PN-type Photodiode

Photovoltaic Mode Operation

High Responsivity & Low Dark Current

2.GVBL-S12SD UV / Visible SensorApplications

UV LED Monitoring (385, 405nm, etc.)

Blue LED Monitoring

UVA Lamp Monitoring

UV Curing

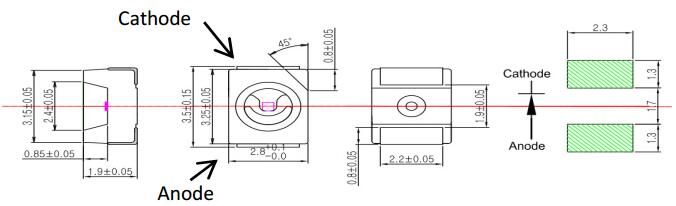

3.GVBL-S12SD UV / Visible SensorOutline Diagrams and Dimensions

4.GVBL-S12SD UV / Visible SensorAbsolute Maximum Ratings

Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 5V
Forward Current: 1mA
Soldering Temperature: 260℃

5. GVBL-S12SD UV / Visible Sensor Characteristics (at 25℃)

Dark Current(Max.): 1nA
Photo Current (Typ.): 90nA (UVA (352nm), 1mW/cm2);
790nA (405nm LED, 1mW/cm2)
Responsivity: 0.68A/W
Spectral Detection Range: 345~450nm
