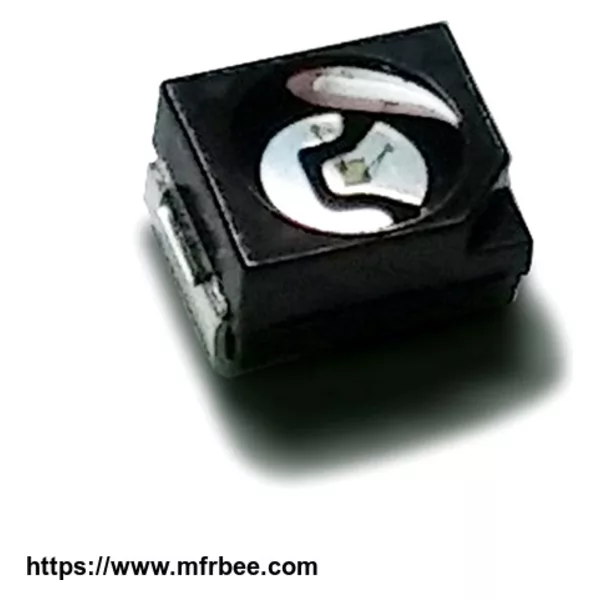

GVGR-S11SD UV / Visible Sensor
Product Quick Detail
- Brand Name
- Genicom
- Place Of Origin
- South Korea
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
1. UV / Visible Sensor GVGR-S11SD Features
SMD3528 with Si-encapsulant
Indium Gallium Nitride Based Material
PN-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Current
2. UV / Visible Sensor GVGR-S11SD Applications
UV LED Monitoring (385, 405nm, etc.)
Blue LED Monitoring
UVA Lamp Monitoring
UV Curing
3. UV / Visible Sensor GVGR-S11SD Outline Diagrams and Dimensions
4. UV / Visible Sensor GVGR-S11SD Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 5V
Forward Current: 1mA
Soldering Temperature: 260℃
5. UV / Visible Sensor GVGR-S11SD Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 44nA (405nm LED, 1mW/cm2)
Responsivity: 0.07A/W
Spectral Detection Range: 295~490nm
