Wholesale for Deutz oil cooler

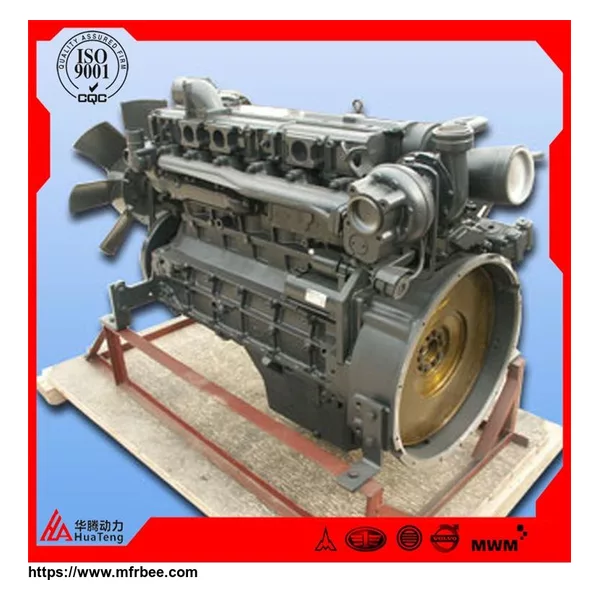

BFM1013/2012
BFM 1013/2012 series engines adopt unit pump,which is integrated with complete engine,drived by camshaft gear so that enable the injecting oil time is controlled accurately .These engines also install with one-piece oil radiator to make the engine structure is compact .
Engine Model | AUTOMOTIVE POWER | NET BRAKE FUEL STOP POWER | ISO STANDARD FUELSTOP Power(ICFN) | Max torque | Bore/ store | Displace- ment | Dimensions | Weight | |||
KW(HP)/RPM | KW(HP)/RPM | L | W | H | |||||||
KW(HP)/RPM | MAX | MAX | MIN | Nm RPM | mm | L | mm | mm | mm | kg | |
BF4M1013 | 95(128.2)2300 | 90(121.5)2300 | 79(106.6)2300 | 58(78.3)1500 | 463/1400 | 108/130 | 4.76 | 945 | 685 | 818 | 480 |
BF4M1013C | 115(155.2)2300 | 112(151.2)2300 | 99(133.6)2300 | 72(97.2)1500 | 572/1400 | 108/130 | 4.76 | 957 | 685 | 818 | 482 |
BF6M1013 | 141(190.3)2300 | 133(179.5)2300 | 119(160.6)2300 | 87(117.4)1500 | 703/1400 | 108/130 | 7.14 | 1239 | 760 | 868 | 625 |
BF6M1013C | 170(229.5)2300 | 161(217.3)2300 | 144(194.4)2300 | 106(143)1500 | 847/1400 | 108/130 | 7.14 | 1252 | 760 | 868 | 627 |
BF6M1013CP | 190(256.5)2300 | 181(244.3)2300 | 161(217.3)2300 | 118(159.3)1500 | 947/1400 | 108/130 | 7.14 | 1252 | 760 | 898 | 627 |
