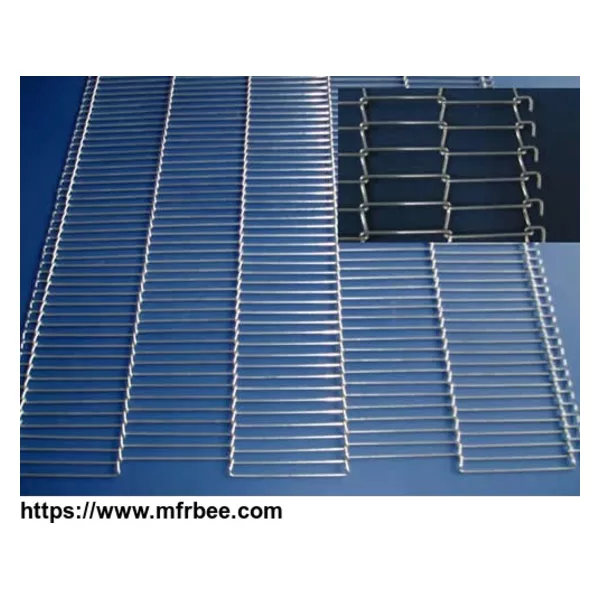

Flat wire conveyor belts

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Flat wire conveyor belts have two types according to its loading capacity. One is Standard Duty General Purpose flat wire belt, another is Heavy Duty Belt. All flat wire belting offers a smooth conveying surface and a maximum open area for free air flow or water drainage. They are easy to clean and are extremely sanitary, especially when manufactured with high quality clinched edges. Clinched-edge treatment of these belts results in a number of additional user benefits including keeping the transporting stuff from dropping the conveyor belt or from holding by the wires.

Dezhong Offers following flat mesh belt for drying and transmitting:

Stainless Steel Heavy Duty Welded Selvage Flat Wire Belt
Heavy Duty Clinched Selvage Flat Wire Belt
Standard Duty Flat Conveyor Belt
Stainless Steel Standard Duty Flat Wire Belt
All welded selvage belts over 24 inches in width feature the resistance welding of every other connector rod to the flat strip on the 2nd opening in from each edge of the belt. On true 1/2" x 1/2" mesh belts this weld is on every 3rd connector rod. This provides for greater strength and eliminates belt shrinkage under heavy loads without restricting flexibility of the belt. Upon special request, belts 24" and under can be supplied with internal welds.

Application:
Canning and food preparation.
Baking and freezing food.
Parts cleaning.
Parts painting and drying.

Stainless Steel AISI 304 Type Beltings

Materials Choice:
Galvanized Low Carbon Steel (C1015).
Bright High Carbon Steel (C1045).
Type 201 Stainless Steel
Type 304 Stainless Steel.
Type 316L Stainless Steel.
