DO1200 Laboratory Dissolved Oxygen Sensor

Minimum Order
1
Brand Name
Sensorex
Place Of Origin
United States
Packaging
N/A
Delivery
15 Days

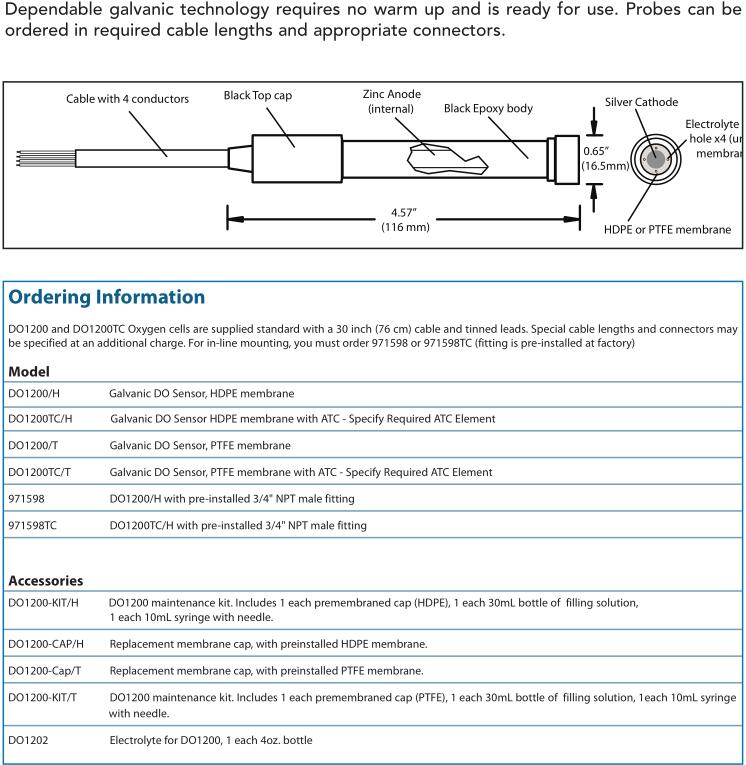

DO1200 and DO1200TC Dissolved Oxygen Sensors


Item No.: DO1200/H, DO1200/T, DO1200TC/H, DO1200TC/T, 971598, 971598TC


Reliable galvanic sensing technology

Compact 12mm design
For portable, laboratory or on-line use
Optional integral ATC element
Easy to use pre-membraned replacement caps

The DO1200 and DO1200TC feature dependable galvanic technology. No warm up period is required. Sensors are supplied with fast responding HDPE membrane caps for portable or lab use. Optional PTFE membrane caps are available for on-line or heavy UV exposure applications. Fill solution is replaceable when required.

The DO1200 is supplied without internal temperature compensation. The DO1200TC can be supplied with a variety of user defined ATC elements. Standard cable length is 2.5 feet with a tinned lead termination. Longer cable lengths and connectors are available for an additional charge. For on-line use, our FC75P 3/4 inch in-line fitting may be ordered to provide for mounting into 3/4 inch FNPT threaded tees.


DO1200 and DO1200TC Dissolved Oxygen Sensors Specifications

Range 0-20 mg/L
Body Material Epoxy and Noryl
Max Temperature 50 Degrees C
Saturation Output HDPE =47mV +/- 9mV,
PTFE =33mV+/-9mV
Pressure 0-100 psig (7.5 Bar)
Calibration Single point in air
Response Time After Equilibration, HDPE 1 minute for 2mV, PTFE 2 minutes for 2mV
