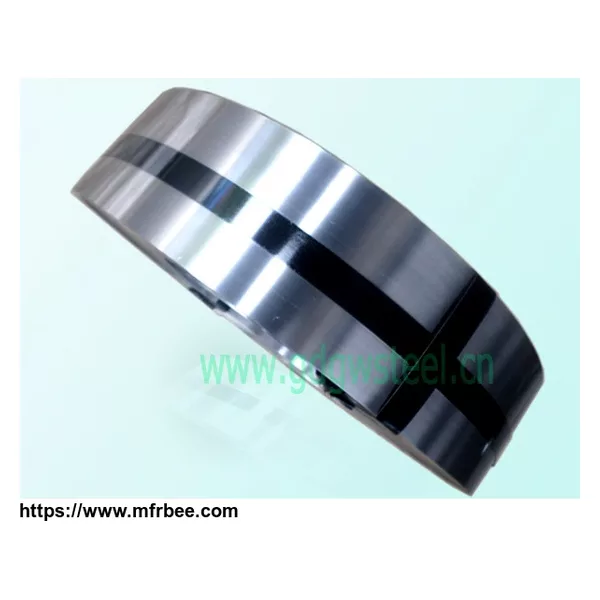

Oscillate steel strapping
Product Quick Detail
- Ton
- 1
- China
- Mainland
- Guangdong
- Guangzhou
- 800
- 1500
- Packaging
- Standard export package
- Delivery
- 25 Days
Specifications
Product Overview
Three types of coil can be used for hand tool applications but strapping machines always use the oscillation type as they hold at least twice or more strap as well.
Specifications and surface treatment :
1) Metric width: 9.5mm,12.7mm, 16.0mm, 19.0mm, 25.4mm, 31.75mm, 32mm
2) Metric thickness: 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.1mm, 1.2mm
3) Surface: Tempered blue+waxed / tempered blue/ tempered blue+waxed+painted like: green, brown,black,etc.
Physical properties:
Physical properties:
| Meterial grade |
tensile strength
(Mpa) |
Elongation>=
A % (L0＝5.65) |
| Ext900 | 900 | 6 |
| Ult1000 | 1000 | 12 |
| Ult1250 | 1250 | 6 |
Packing:
factory packing like below then meet for standard seaworthy packing
Meter/kg: all ranges of width: 9.5-40mm, thickenss: 0.4-2.0mm are available.
| Coil width(mm) | OD(mm) | ID(mm) | Per Coil weight(kg) | Coil number on a pallet |
| 114 | 700 | 406 | 150 | 5 |
| 190 | 700 | 406 | 250 | 3 |
Meter/kg: all ranges of width: 9.5-40mm, thickenss: 0.4-2.0mm are available.
| meter/kg | width | 12.7mm | 16.0mm | 19.0mm | 25.0mm | 31.75mm |
| thickenss | inch | 1/2" | 5/8" | 3/4" | 1" | 1 1/4" |
| 0.40mm | .015" | 25.08 | 19.9 | - | - | - |
| 0.50mm | .020" | 20.06 | 15.29 | 13.41 | - | - |
| 0.60mm | .023" | - | 13.27 | 11.17 | 8.49 | - |
| 0.70mm | .028" | - | - | 9.58 | 7.28 | 5.73 |
| 0.80mm | .031" | - | - | 8.38 | 6.37 | 5.02 |
| 0.90mm | .035" | - | - | 7.45 | 5.66 | 4.46 |
| 1.00mm | .040" | - | - | 6.70 | 5.10 | 4.01 |
| 1.20mm | .047" | - | - | - | - | 3.33 |
Accordingly, it can be produced according to your demand.
Awaitig your email feedback. thank you !
