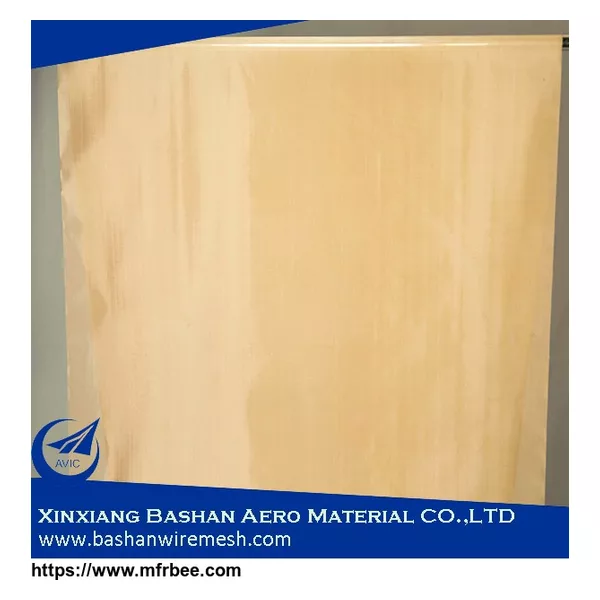

Manufacturer In China Brass Screen Copper Wire Mesh

Product Description

China steel mesh manufacturers Brass Wire Mesh:

China steel mesh manufacturers Brass Wire Mesh
Material	Copper, brass, tin bronze, phosphor bronze
General purpose	1,Copying newsprint, printing paper with 60 to 70 mesh copper mesh 2,Typing paper with 90 to 100 mesh copper network
Features	1,good corrosion resistance and wear resistance. 2,Phosphor bronze net, with superior tensile, bending force, wear resistance and 3,stretching force. 4,Brass mesh has appropriate tensile and extensibility, mesh habit per inch in the number of meridians for the mesh. 5,The smaller the mesh, the larger the mesh, the better the water filtration performance.

The specifications of wire mesh:

Mesh NO.	(mm)Aperture size	(mm)Wire Dia	Screening area (%)	Mesh/inch	(Kg/m²)
5#	4	1	64	5.08	2.52
6#	3.35	0.8	65	6.12	2.15
3.35	0.63	71	6.38	1.39
	3.15	0.8	64	6.43	2.26
3.15	0.58	72	6.85	1.26
7#	2.8	0.71	51	7.24	2
2.8	0.56	69	7.56	1.3
	2.5	0.62	64	8.12	1.71
2.5	0.5	69	8.47	1.16
8#	2.36	0.56	65	8.7	1.5
2.36	0.45	71	9.04	1
10#	2	0.5	64	10.2	1.69
2	0.45	59	10.6	1.18
	1.9	0.6	58	10.2	2.01
1.9	0.5	63	10.6	1.46
1.8	0.45	64	11.3	1.26
12#	1.7	0.45	63	11.8	1.31
1.7	0.4	66	12.1	1.06
	1.6	0.45	61	12.4	1.38
1.6	0.4	64	12.7	1.12
1.5	0.4	62	13.4	1.17
14#	1.4	0.4	60	14.1	1.24
1.4	0.355	64	14.5	1
1.32	0.4	59	14.8	1.3
1.25	0.4	57	15.4	1.35
1.25	0.315	54	16.2	0.88
16#	1.18	0.4	56	16.1	1.41
1.18	0.315	52	17	0.92
1.12	0.355	58	17.2	1.19
1.12	0.28	54	16.1	0.69
1.06	0.355	56	16	1.11
1.06	0.28	53	19	0.81
18#	1	0.355	54	18.8	1.3
1	0.25	54	20.3	0.69
0.95	0.355	53	19.5	1.35
0.9	0.355	51	20.2	1.4
20#	0.85	0.315	53	21.8	1.19
0.85	0.224	53	23.7	0.65
	0.8	0.315	51	22.8	1.24
0.8	0.2	64	25.4	0.56
0.75	0.315	50	23.8	1.29
0.75	0.28	53	24.7	1.06
25#	0.71	0.28	51	25.7	1.11
0.71	0.2	61	27.9	0.61
	0.67	0.28	50	26.7	1.15
0.63	0.25	51	28.9	0.99
0.63	0.2	58	30.8	0.68
30#	0.6	0.25	50	29.9	1.02
0.6	0.18	59	32.6	0.58
	0.56	0.224	51	32.4	0.89
0.56	0.18	57	34.3	0.61
0.53	0.224	49	33.7	0.93
0.53	0.18	56	35.8	0.64
35#	0.5	0.224	48	35.1	0.98
0.5	0.16	57	38.5	0.54
	0.475	0.16	53	38.9	0.55
0.45	0.18	51	40.3	0.72
0.45	0.14	58	43.1	0.46
40#	0.425	0.16	53	43.4	0.61
0.425	0.14	57	45	0.49
0.4	0.16	51	45.4	0.64
0.4	0.14	56	47	0.51
0.375	0.16	49	47.5	0.69
0.375	0.125	56	50.8	0.44
45#	0.355	0.14	51	51.3	0.55
0.355	0.125	55	52.9	0.45
0.315	0.14	49	55.8	0.6
0.315	0.125	51	57.7	0.49
50#	0.3	0.14	46	57.7	0.62
0.3	0.112	53	61.6	0.42
60#	0.25	0.125	44	67.7	0.58
0.25	0.1	51	72.6	0.4
	0.236	0.125	43	70.4	0.61
0.224	0.125	41	72.8	0.63
0.224	0.09	51	80.9	0.36
70#	0.212	0.125	40	75.4	0.65
0.212	0.09	49	84.1	0.37
0.2	0.125	39	78.2	0.68
0.2	0.08	51	90.7	0.32
0.19	0.125	36	80.6	0.69
80#	0.18	0.125	35	83.3	0.74
0.18	0.071	51	101	0.28
	0.17	0.112	36	90.1	0.62
0.17	0.063	53	109	0.24
0.16	0.112	35	93.4	0.64
0.16	0.063	51	114	0.25
100#	0.15	0.1	38	102	0.56
0.15	0.063	50	119	0.26
	0.14	0.09	37	110	0.49
0.14	0.063	48	125	0.27
0.132	0.09	35	114	0.51
120#	0.125	0.09	34	118	0.53
	0.118	0.05	36	128	0.18
	0.112	0.08	34	132	0.46
0.112	0.063	41	145	0.32
140#	0.106	0.071	36	144	0.4
0.106	0.05	40	163	0.22
	0.1	0.071	34	149	0.41
0.1	0.05	44	169	0.23
	0.095	0.063	36	161	0.35
170#	0.09	0.063	35	166	0.36
0.09	0.05	40	181	0.25
	0.085	0.056	36	180	0.31
	0.08	0.056	36	187	0.32
0.08	0.04	44	212	0.19
200#	0.075	0.05	33	194	0.33
0.075	0.045	39	212	0.24
	0.071	0.056	31	200	0.34
0.067	0.05	33	217	0.3
230#	0.063	0.045	34	235	0.26
0.063	0.04	37	247	0.22
	0.06	0.045	33	242	0.27
0.056	0.04	34	265	0.23
270#	0.053	0.04	33	273	0.24
0.053	0.032	39	300	0.17
	0.05	0.036	34	295	0.21
0.05	0.03	39	317	0.16
0.048	0.032	36	318	0.18
325#	0.045	0.036	31	314	0.22
0.045	0.028	38	348	0.11
	0.04	0.03	32	363	0.18
400#	0.038	0.025	36	403	0.14
500#	0.025	0.025	31	508	0.14
0.028	0.022
600#	0.02	0.02		635	0.13
