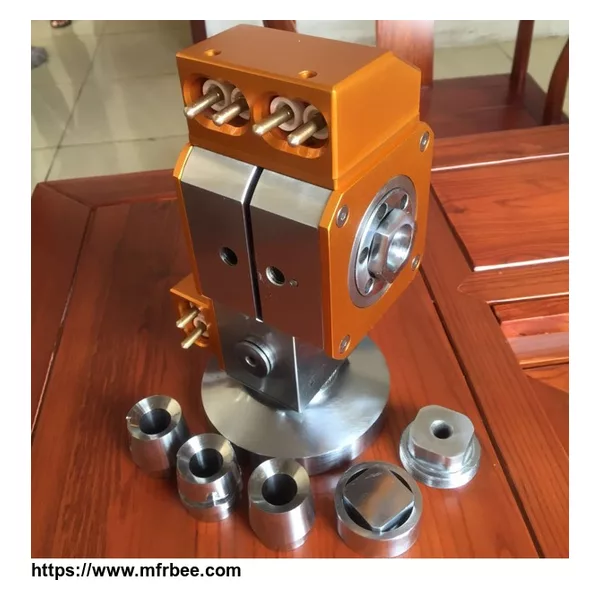

dual layer crosshead with manual by-pass

Place Of Origin
China (Mainland)
FOB Price
USD $5,000.00 / Piece
Minimum Order
1
Packaging
standard exporting case packing
Delivery
10-15working days

1.we are a professional designed&manufacturer of wire extrusion head and extrusion dies

2.we have established in 1998 and has almost 20years experience in this field.

3.We can produce cable diameter range from 0.24mm-200mm

4.We produce hundreds of machine heads,such as free adjustable,adjustable,single-layer,double-layer co-extrusion,three-layer co-extrusion,flat wire,high temperature wire extrusion head.etc.

5.We have introduced several sets of domestic advanced five-axis CNC machining centers and CNC laths and other professional production exquipments.



We also sell many new products about the Mould/Die, pls send us your design, then we give you a quick reply

If any questions or problem, ,pls feel free to contact us...

Technical specification

Product name adjustable extrusion head for wire insulation from Kunshan Yishida
Crosshead material S136 or as you required
Min. diameter of conductor Ø0.1 mm
Max. diameter ofconductor Ø5 mm
Max wire diameter after extrusion Ø7mm
Main screw diameter Ø25-50mm
Application Insulating: Small solid and stranded wires

Examples of usage:

Solid telephone wire, porous film-a porous insulation, tool wire, flat wire, colored and striped insulation etc.

Suitable extrusion material PVC / PE / PA / PUR / LSH,etc
Insulation structure single layer, two layers, single and multiple striping options
Heater internal heating(heating pipes)
Voltage as you required
  • Country: China (Mainland)
  • Business Type: wire extrusion head,extrusion die. extruder accesspry parts.drawing dies
  • Market:Asia,Middle East,Europe,Americas
  • Founded Year:1998
  • Address:No 122,New Yangxi Road,Luyang Town,Kunshan city,Jiangsu Province,China
  • Contact:lynn liu
