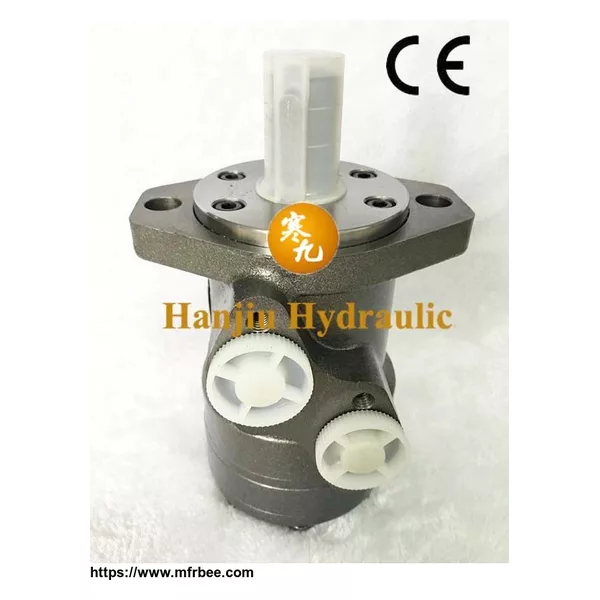

Hydraulic Orbit Motor BMP
BMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth. Characteristic Features: * Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life. * Shaft seal can bear high pressure of motor of which can be used in parallel or series. * Advanced construction design, high power and low weight. |
Order Code: |
Code | |
BMP | |
Displacement | |
36 50 80 100 125 160 200 250 315 400 500 |
|
Flange | |
2 | 2-Ø13.5 Rhomb-flange,pilot Ø82.5×8 |
4-Ø13.5 Rhomb-flange,pilot Ø82.5×8 | |
H4 | 4-3/8-16 Square-flange,pilot Ø44.4×2.8 |
H5 | 4-M10 Square-flange,pilot Ø44.4×2.8 |
Output Shaft | |
A | Shaft Ø25,parallel Key 8x7x32 |
B | Shaft Ø32,parallel Key 10x8x45 |
C | Shaft Ø25.4,parallel Key 6.35x6.35x31.75 |
E | Shaft Ø25.4,splined tooth SAE 6B |
R | Short shaft Ø25.4,parallel key 6.35x6.35x31.75 |
F | Shaft Ø31.75,splined tooth 14-DP12/24 |
FD | Long shaft Ø31.75,splined tooth 14-DP12/24 |
G | Shaft Ø31.75,parallel Key 7.96x7.96x31.75 |
T | Cone-Shaft Ø28.56,parallel Key B5x5x14 |
T3 | Cone shaft Ø31.75,parallel key 7.96x7.96x25.4 |
Port and Drain Port | |
D | G1/2 Manifold Mount 4xM8, G1/4 |
M | M22×1.5 Manifold Mount 4xM8, M14×1.5 |
S | 7/8-14 O-ring manifold 4x5/16-18UNC, 7/16-20UNF |
P | 1/2-14 NPTF Manifold 4x5/16-18UNC,7/16-20UNF |
R | PT(Rc)1/2 Manifold 4xM8, PT(Rc)1/4 |
Rotation Direction | |
Omit | Standard |
R | Opposite |
Paint | |
00 | No paint |
Omit | Blue |
B | Black |
S | Silver grey |
Unusually Function | |
Omit | Standard |
N | Big radial force |
O | No case drain |
F | Free Running |
LS | Low Speed |
Substitute Reference substance
MOTOR CROSS REFERENCE TABLE |
||||||||
HANJIU HYDRAULIC |
M+S HYDRAULIC |
EATON CHAR LYNN |
DANFOSS |
ROSS TRW |
WHITE CROSS |
PARKER |
SAM BREVINI |
BOSCH RECROTH |
BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV |
Hydraulic orbit motor applications:
Brush cutters
Mower
Haveresting equipment
Forestry equipment
Turf equipment
