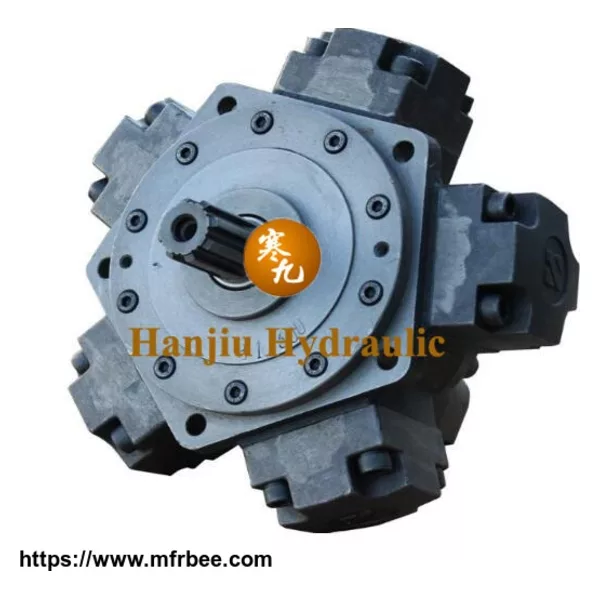

JMDG is one kind of low speed high torque radial piston hydraulic motor. It can be widely applied in petroleum industry, chemical industry,mining, shipping, constructing machinery, especially for
plastic injection molding machinery, hydraulic winch, transmission etc.
■ Technical Data
TYPE |
Displacement ml/r |
Pressure (Mpa) |
Torque (N.m) |
Speed range (r/min) |
Max cont power (KW) |
Weight (kg) |
||
Peak pressure |
Cont pressure |
Rate torque(N.m) |
Theoric torque (N.m/MPa) |
|||||
JMDG1-50 | 56 | 22 | 16 | 128 | 8 | 35-500 | 6 | 23 |
JMDG1-63 | 64 | 22 | 16 | 150 | 9 | 35-500 | 7 | 23 |
JMDG1-80 | 78 | 20 | 16 | 183 | 11 | 35-500 | 9 | 23 |
JMDG1-100 | 96 | 20 | 16 | 225 | 14 | 35-500 | 11 | 23 |
JMDG1-125 | 126 | 20 | 16 | 295 | 18 | 35-500 | 15 | 23 |
JMDG1-160 | 159 | 20 | 14 | 326 | 23 | 35-500 | 16 | 23 |
