Hydraulic Motor with Decelerator
Product Quick Detail
- FOB Price
- USD $900.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- wooden case or others
- Delivery
- 15 Days
Specifications

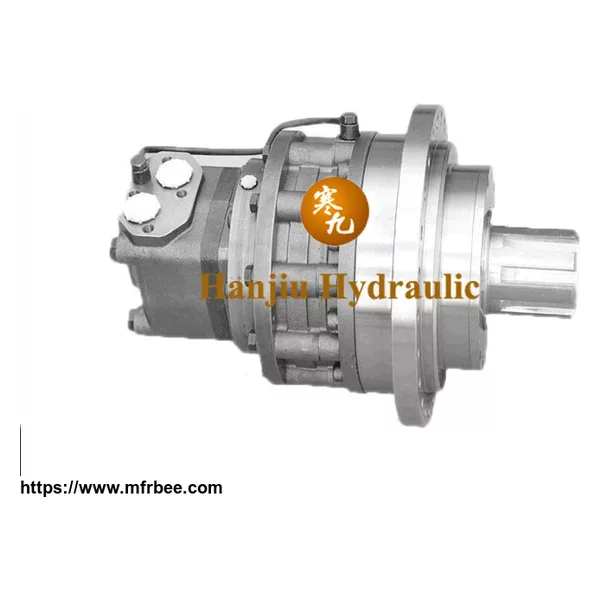

ZJM decelerator associated hydraulic motor is made up of planet gear decelerator and hydraulic motor. Small, stable at low speed, high performance and low price. Especially fit for small radial
space, low speed and large torque needed working place.
■ TECHNICAL DATA
|
TYPE |
Displacement ml/r |
Max pressure Mpa |
Max torque N.m |
Speed range (r/min)n |
Ratio of gearbox |
Associated motor |
Weight kg |
mm Length |
| ZJM1.03-730/B | 728.6 | 11.5 | 1000 | 9-60 | 4.85 | BM4-160 | 40 | 425 |
| ZJM1.03-920/B | 921.3 | 13.6 | 1500 | 9-60 | 4.85 | BM4-200 | 40 | 429.5 |
| ZJM1.03-1450/B | 1456.8 | 11.5 | 2000 | 9-50 | 4.85 | BM4-320 | 40 | 442 |
| ZJM1.03-1840/B | 1842.6 | 13.7 | 3000 | 9-40 | 4.85 | BM4-400 | 40 | 451 |
| ZJM1.06-2730/B | 2731.3 | 12.3 | 4000 | 7-40 | 4.42 | BM5-630 | 100 | 465.5 |
| ZJM1.06-3480/B | 3481.1 | 12 | 5000 | 6-35 | 4.42 | BM5-800 | 100 | 479.5 |
| ZJM1.06-4285/B | 4284.4 | 11.7 | 6000 | 6-30 | 4.42 | BM5-985 | 100 | 494.5 |
| ZJM600/C | 580 | 20 | 1500 | 3-65 | 6 | JMDG2-100 | 45 | 350 |
| ZJM900/C | 940 | 20 | 2260 | 3-65 | 6 | JMDG2-150 | 45 | 350 |
| ZJM1000/C | 1050 | 20 | 2630 | 3-65 | 6 | JMDG2-175 | 45 | 350 |
| ZJM1200/C | 1200 | 20 | 3000 | 3-65 | 6 | JMDG2-200 | 45 | 350 |
| ZJM1500/C | 1520 | 25 | 4780 | 2-58 | 6 | JMDG3-250 | 85 | 345 |
| ZJM1800/C | 1730 | 20 | 4500 | 2-58 | 6 | JMDG3-300 | 85 | 345 |
| ZJM2100/C | 2100 | 20 | 5260 | 2-58 | 6 | JMDG3-350 | 85 | 345 |
| ZJM4200/C | 4258 | 14.8 | 8000 | 7-35 | 5.6 | JMDG6-750 | - | 497.5 |
| ZJM6300/C | 6307 | 15 | 12000 | 6-35 | 5.6 | JMDG8Y-1100 | - | 502.5 |
| ZJM7000/C | 6900 | 20 | 17500 | 3-65 | 5 | JMDG16-1400 | - | 478 |
| ZJM10000/C | 10000 | 20 | 25400 | 3-45 | 5 | JMDG16-2000 | - | 478 |
| ZJM12000/C | 12000 | 16 | 24000 | 3-40 | 5 | JMDG16-2400 | - | 478 |
