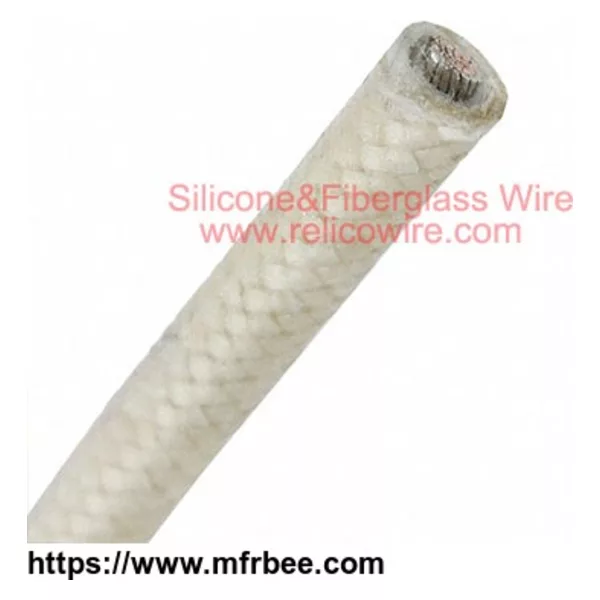

Silicone Rubber Insulated Fiberglass Braiding Wire & Cable
Product Quick Detail
- Place Of Origin
- Shanghai
- Minimum Order
- 2995
- Packaging
- 100Meters/Roll
- Delivery
- 7 Days
Specifications
- Product Series:AGRP
- Rated temperature:- 65° C to + 200°C
- Rated voltage:600V
- Test voltage:1000V
- Insulation material:Silicone Rubber+Fiberglass braiding
- Conductor material:Tinned Copper
- Product Standards:Q/IRMV2-2008
Specification And Construction Data
|
Conductor
（mm2） |
Conductor Construction Root/mm |
Insulation Thickness （mm） |
Braiding thickness
（mm） |
Wire Diameter (mm) |
Electric Resistance （Ω/km） |
| 0.20 | 12/0.15 | 0.60 | 0.15 | 2.10 | 92 |
| 0.30 | 16/0.15 | 0.60 | 0.15 | 2.15 | 61.2 |
| 0.40 | 23/0.15 | 0.60 | 0.15 | 2.30 | 46 |
| 0.50 | 28/0.15 | 0.60 | 0.15 | 2.40 | 36.8 |
| 0.75 | 42/0.15 | 0.70 | 0.15 | 2.80 | 24.5 |
| 1.00 | 32/0.20 | 0.70 | 0.15 | 3.00 | 18.4 |
| 1.5 | 30/0.20 | 0.70 | 0.15 | 3.30 | 12.3 |
| 2.0 | 40/0.25 | 0.80 | 0.15 | 3.80 | 9.20 |
| 2.5 | 49/0.25 | 0.80 | 0.15 | 4.00 | 7.36 |
| 4.0 | 56/0.30 | 1.0 | 0.18 | 5.20 | 5.09 |
| 6.0 | 84/0.30 | 1.0 | 0.18 | 5.70 | 3.06 |
| 10 | 84/0.40 | 1.0 | 0.18 | 7.20 | 1.85 |
| 16 | 128/0.40 | 1.50 | 0.20 | 9.20 | 1.15 |
| 25 | 198/0.40 | 1.50 | 0.20 | 11.10 | 0.795 |
| 35 | 495/0.30 | 2.0 | 0.20 | 13.00 | 0.565 |
| 50 | 398/0.40 | 2.0 | 0.25 | 14.80 | 0.368 |
| 70 | 556/0.40 | 2.0 | 0.25 | 17.00 | 0.277 |
| 95 | 756/0.40 | 2.2 | 0.25 | 19.50 | 0.193 |
| 120 | 610/0.50 | 2.2 | 0.25 | 21.00 | 0.153 |
