A.Specification of BTS 4000
B. Specification of 5V60A
Project index | Parameter index | |
Input Power | AC220V ±10% / 50Hz | |
resolution | AD:16bit;DA:16bit | |
Input Resistance | ≥1MΩ | |
Input Power | 4253W | |
Channel Features | Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure | |
Channel Control Mode | Independent Control | |
Voltage | Per Channel Voltage Range | 25mV~5V; |
Discharge Min Voltage | 0V | |
Accuracy | ±0.1% ofFS | |
Stability | ±0.1% ofFS | |
Current | Per Channel Current Range | 0.3A-60A |
Accuracy | ±0.1% ofFS | |
Stability | ±0.1% ofFS | |
Power | Per Channel Output Power | 300W |
Stability | ±0.2% ofFS | |
Time | Current Response Time | 20ms |
Step Time Range | ≤(365*24)hour/step, Time Form Support00:00:00(h,min:s,ms) |

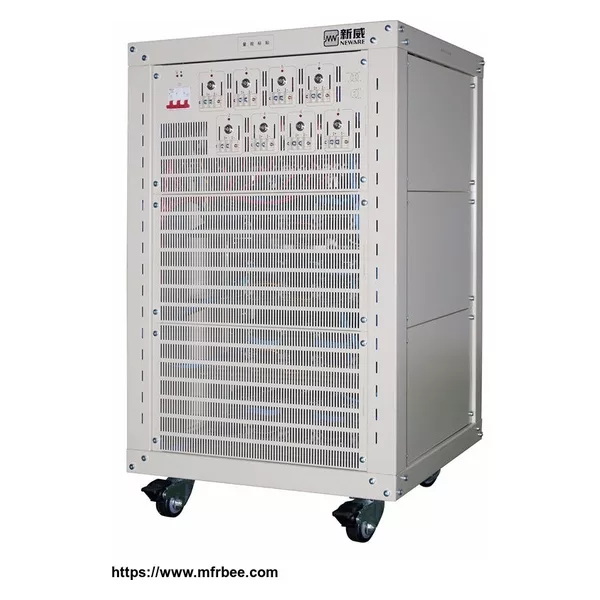

BTS4000(Power) A.Background of Neware NEWARE is a testing solutions provider.Since 1998, NEWARE has been committed to providing world-class battery testing equipment. And these efforts have been rewarded with more than 100,000 sets of testing equipment and over 20,000 customers ...
