Model: Four models for your choice
Capacity: Refer to the detailed parameter list
Power source: Refer to the detailed parameter list
Dimensions Refer to the detailed parameter list
Guarantee: 2 years
Delivery time: 10-15 days

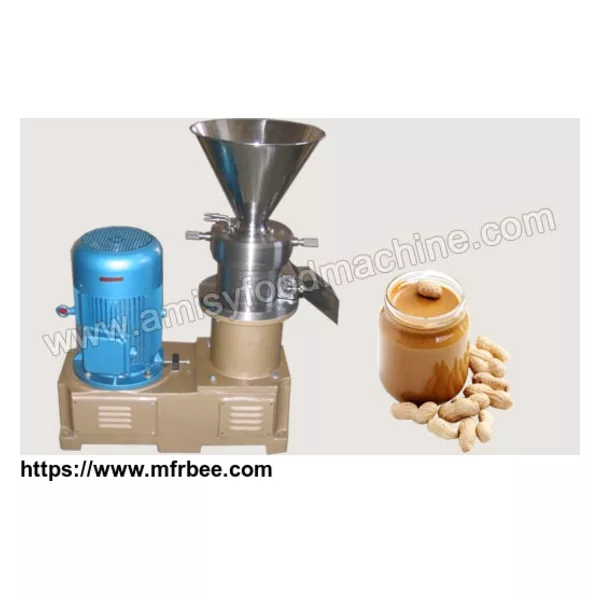

Paste Grinding Machine Introduction
The paste grinding machine is also called colloid mill is new designed equipment which introduces the latest technology, it has 2 kinds: one is semi-stainless steel which main part is made of
stainless steel; the other is made of full stainless steel. The customers can choose the one according to their request. Our paste grinding machine enjoys great popularity in many industries, such
as food industry, chemical industry, medical industry, etc.
Paste Grinding Machine Advantages
1. Made of semi-stainless steel or full stainless steel, clean and sanitation
2. Compact design, utility model and beautiful appearance
3. Good sealing, stable performance, easy to operate and maintain
4. High automatic degree, high yield, good reliability
5. Widely usage, high production efficiency and long life service
Paste Grinding Machine Working Principle
Fluid or semi-fluid materials through high speed relative motion of rotor and stator, so that the material get the strong shearing force, frictional force and the high frequency vibration,
effectively being crushed, emulsified, homogenized to get the fine processing products.
Paste Grinding Machine Applications
Paste grinding machine is widely used in many industries as follow:
1. Food industry: Dairy products, chocolate, bean paste, jam, peanut butter, cream drinks, etc.
2. Chemical Industry: pigments, lubricants, spices, dyes, emulsified asphalt, emulsifying rubber, catalysts, paints and coatings, etc.
3. Pharmaceutical industry: cod liver oil, confidentiality, athletes paste, pollen, etc
4. Daily chemical industry: shoe polish, cosmetics, toothpaste, soap, detergent, balsam, etc
5. Other industries: construction industry, paper industry, plastic industry, battery industry and so on
The Maintenance of Paste Grinding Machine
1. During the operating of paste grinding machine, please make sure the bearing temperature will not exceed environment temperature 35℃,the highest temperature should not be more than 80℃.
2. If there is abnormal voice during the working process, please immediately stop to check.
3. Regularly check the wear of axle sleeve, please change it in time after bigger wear
4. If the paste grinding machine is long time no use, you need to take part all parts of the pump and dry water, installing rotating parts and combine coats with grease, properly preserve.
Paste Grinding Machine Technical Parameters
Model Voltage Power Capacity Speed Fineness Dimension Weight
AMS-50 380V 1.1/1.5Kw 5-30Kg/h 1750-5000r/min 2-50μm 530*260*580mm 150Kg
AMS-80 380V 4Kw 100-500Kg/h 1600-5000r/min 2-50μm 680*380*930mm 200Kg
AMS-130 380V 11kw 0.5-2T/h 1750-5000r/min 2-50μm 990*440*1050mm 380Kg
AMS-180 380V 18.5kw 0.8-6T/h 1600-5000r/min 2-50μm 1350*550*1340mm 420Kg
