Raw Material Mill

FOB Price:	US $3,900 - 37,960 / Set
Port:	Qingdao,Tianjin,Shanghai or other port requested
Minimum Order Quantity:	1 Set
Supply Ability:	100 Sets per Month as your request
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Hongxing series crushers are rated as 'China Famous Brand' for superb performance. In addition, Hongxing crusher ranks high in the China Top Ten Crushers list.

Quick Details

Condition:	New	Type:	Cement mill	Capacity(t/h):	4.5--210 t/h
Place of Origin:	China (Mainland)	Brand Name:	Hongxing	Model Number:	HX
Certificate:	ISO9001:2008	Application:	Cement,coal,construction	Energy:	Saving
Structure:	Reasonable	Warranty:	1 year

Packaging & Delivery

Packaging Detail:	Standard export containers or in bulks. Bare main machines, motors and small parts are packed in wooden cases.
Delivery Detail:	Within 20 working days after receiving the down payment.

Specifications

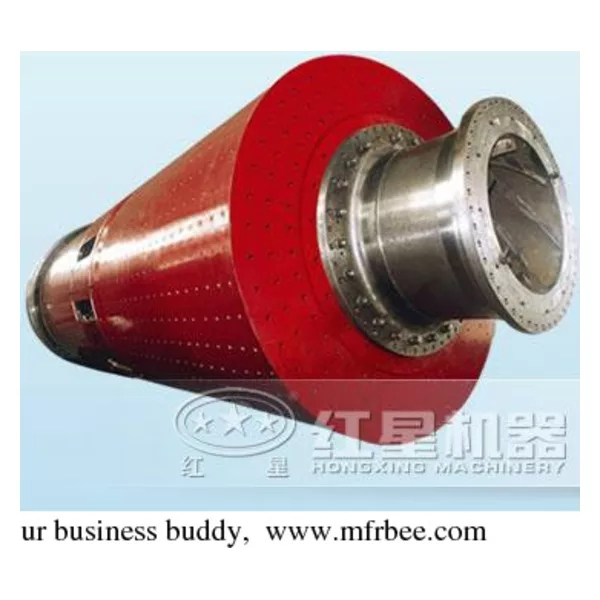

Hongxing Raw Material Mill
1.Stable & reliable condition.
2.Good wear-resistance.
3.High efficiency.
4.Wide application.

Specification and Technical Parameter

Product Specification (m)	Milling form	Transmission form	Gear box	Motor power(kW)	Production capacity (t/h)	Total weight (t)
Model	Speed reduction ratio
Φ1.5×5.7	Open flow	Brim	ZD40	3.55	130	4.5-6	25.8
Φ1.83×6.4	Open flow	Brim	ZD60	4.5	210	7.5-15	43
Φ2.2×6.5	Circle flow	Brim	ZD70	5	380	14-26	60
Φ2.2×13	Open flow	Central shaft	D110	35.5	630	29-34	114
Φ2.4×10	Circle flow	Brim	2D80-4	6.435	570	25-45	118
Φ2.4×13	Open flow	Central shaft	D110	35.5	800	40-50	130.6
Φ2.6×13	Open flow	Central shaft	MFY100	19.5	1000	43-54	158
Φ3×9	Circle flow	Central shaft	D125	41.2	1000	32-68	167
Φ3.2×9	Circle flow	Brim	MBY900	7.1	1250	62-65	195
Φ3.8×7.5	Circle flow	Brim	JDX900	5.6	1600	80	233
Φ4.6×10+3.5	Circle flow	Central shaft	JQS3550	15.1	3550	190	415
Φ4.6 10.5+3.5	Circle flow	Central shaft	JQS3550	15.1	3550	210	476

Company Profile

Henan Hongxing Mining Machinery Co., Ltd. is a joint-stock mining machinery manufacturing enterprise integrated in scientific research, production and marketing. It is located at the High & New Technology Industries Development Zone of Zhengzhou, China with an area of 50,000 m2 which includes 15,000 m2 of standard heavy duty industrial workshop. Equipment are more than 160 pieces, including large and medium sized metal processing, riveting and installing equipment. There are 960 workers including 80 administrators with secondary and senior occupational titles and engineering technicians.

Research and Marketing

In order to promote competitive strength, advanced technologies have been introduced from America, Germany, Japan and Australia to establish international advanced production line, first-class modern testing base as well as research centers of stone crushing, sand making, milling and ore dressing equipment. Scientific management, advanced processing technology and innovative manufacturing theory make the company become the most renowned manufacturing and exporting base in China. Now we have tens of thousands of users from throughout China and more than 30 world markets, such as: Africa, Middle East, Eastern Europe, Southeastern Asia and South Asia.

Honors and Awards

In 2001, Hongxing Brand mining machinery has passed the authority test detected by the State Department and been rated as 'Products with Standard quality and Assured brand'. In December 2003, we obtained the certificate of ' Qualified Products' by the National Quality Inspection. In April 2005, Hongxing Brand is rated as 'Chinese famous brand'. All products have passed the authentication of ISO9001. In addition, we have been awarded 'Civilized Enterprise', 'Key Enterprise', 'Enterprise with Standard Quality' and 'Enterprise with Honesty and Credit Standing' successively.

Commitment

1. We guarantee that our products are all up to standards set for mining machinery.

2. We will deliver products timely by contract.

3. We will supply you with installation drawings, specifications and operation manual.

4. Lifetime warranty and components for products.

Pre-sales Service

1. Model selection

2. Design products designated by clients

3. Our engineering and technical personnel can provide customers with technological process and project on site.

In-sales Service

1. Product acceptance

2. Help formulate construction scheme for clients

After-sales Service

1. Specialized post-sales service staff will instruct installation and debugging on site

2. Installation and debugging

3. Train technical staff for clients on site

If you want to know much more information about our products and company, you can visit the following website: http://www.hxjqchina.com.
