xinxiang bashan Wire Cutting EDM Consumable Brass Wire
Product Quick Detail
- FOB Price
- USD $4.90 / Piece
- Place Of Origin
- henan,China
- Color
- Golden
- Top Quality
- Hot Product Brass Wires
- Minimum Order
- 50
- Material
- Copper Wire.etc
- Condition
- hard
- Packaging
- Packaging Details: shrink wrapped+carton+pallet
- Delivery
- 15 Days
Specifications
Type:
Application:
Wire Gauge:
Grade:
Cu (Min):
Alloy Or Not:
Ultimate Strength (≥ MPa):
Place of Origin:
Brand Name:
Model Number:
Name:
COMPOSITION:
Wire dia. range:
Tolerance:
Tensile strength:
Features:
Spool type:
Packing:
Stock:
Packaging Details
Each roll of brass wire is wrapped by plastic bag before putting into a small carton
Then several cartons are put into a large plywood case, a plastic bag wrap all cartons inside See pix in description The qty of cartons/plywood case depends on the spool type
Delivery Time
Shipped in 7 days after payment

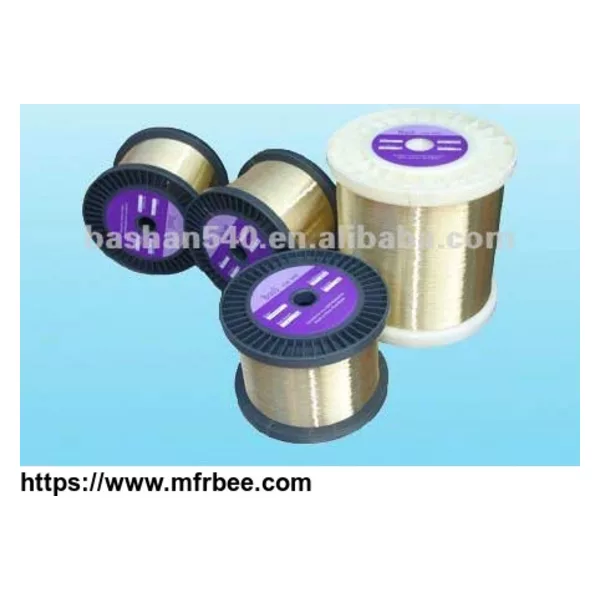

Wire Spool Brass Hard E
Features of factory price Superior Quality for EDM Wire Cutting.
1.High dimensional accuracy.
2.Diameter tolerance is kept to +0 ~ -0.002mm and circularity within 0.001mm.
3.Outstanding straightness.
4.We test each spool for curling and torsion and pride ourselves on the stable automatic wire threading performance or our product.
5.Stable mechanical properties.
6.Tensil strength, elongation, breaking load, etc. are checked with automatic measuring equipment to ensure stable quality.
7.Ultra-smooth surface.
8.A unique quality control system involving special diamond wire drawing dies and lubricating oil ensures that BS wire has an extremely smooth surface, free from irregularities, dirt and scratches.
EDM wire is composed of standard brass CuZn37.
Our product is widely used by WEDM and has outstanding straightness and clean surface.
EDM wire performs excellent AWT(Auto Wire Thread) on any type of WEDM preventing flaking during cutting workpiece.
EDM wire dia. is 0.1-0.33mm with different price.
Passed GJB9001A-2001 military quality certificate.
6.Brand Name:Bashan
China Manufacturer Superior Quality for EDM Wire Cutting.
| Product Name | factory price Superior Quality for EDM Wire Cutting |
| Material | Material : CuZn35,CuZn37,CuZn40 |
| Wire diameter | 0.25mm |
| Weight/Spool | Weight/Spool:3kg/5kg/7kg/15kg/20kg |
| Tensile strength: | above 980Mpa |
| Packing | Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance. |
| Used | used on low speed wire cutting machines like Agie-charmilles, Sodick, Mitsubishi, Makino |
The Specification of factory price Superior Quality for EDM Wire Cutting.
| Condition | Diameter(mm) | Tolerance(mm) | Tensile Strength (N/mm²) | Type of Spool (Standard Weight) |
| | 0.10 | ±0.001 | ≥980 | |
| 0.15 | ±0.001 | ≥980 | ||
| 0.20 | ±0.001 | ≥980 | DIN125(3kg,3.5kg) p5(5kg) DIN160(7kg,8kg) DIN200(15kg,16kg) | |
| 0.25 | ±0.001 | ≥980 | ||
| 0.30 | ±0.001 | ≥980 | ||
| Semi-hard | 0.25 | ±0.001 | | |
| 0.30 | ±0.001 | |||
| Soft | 0.25 | ±0.001 | | |
| 0.30 | ±0.001 |
Reliable Raw Materials
Good and reliable raw material is the most important factor of producing excellent fine stainless steel wire. Bashan company use good raw materials from well-known iron manufacturers at home and abroad. Ugitech in France, Hikari Works in Japan, Tisco in China, D&B Special Steel in China, Ruipu in China, etc.
Xinxiang Bashan Aero Material Co., Ltd.http://www.bashan540.en.alibaba.com
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
Factory
Workshop
1) 800 tons of stainless steel wire of medium and fine wire.3600 tons of coarse wire above 1mm in diameter.
2) 500 thousand square meters of high precision wire cloth in nominal aperture sizes from 6.00 to 0.02mm.
3) 10 million pieces of thread inserts, including free run type and screw-locking type with ranges of M2-M45mm.
Warehouse
We have a professional warehouse management system to ensure the safe storage of our products.
Team & Quality Control
We carry out a strict quality management system in accordance with ISO9001,TS16949,ISO 14001.
1)Passed ISO9001:2008 quality certificate
2)Passed ISO/TS16949:2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing and Delivery of factory price Superior Quality for EDM Wire Cutting.
Packing Details of factory price Superior Quality for EDM Wire Cutting.
* Inner: Plastic bag
Out: Carton or wooden case or according to the weight
* Pallet / Wooden Crate.
* Customized packing.
Processing & Delivery Time of factory price Superior Quality for EDM Wire Cutting.
* Common products in 2-4 days.
* Special products according to Contract.
* Small package is shipped by Air, DHL, FedEx etc.
4-10days.
* Big size package is shipped by sea, 10-30days.
MOQ
* 500 Piece/Pieces
* If no Stock, please contact the supplier to confirm it.
* Payment terms: L/C,T/T,Western Union
* Trade term: EXW/ FOB/ CIF.
The main market of factory price Superior Quality for EDM Wire Cutting.
Q: Do you provide samples ? is it free or extra ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
- Country: China (Mainland)
- Business Type: trading company
- Market:europe
- Founded Year:1955
- Address:No.5 Daoqing Rd, Xinxiang, Henan, 453000, China
- Contact:Jane Yuan
