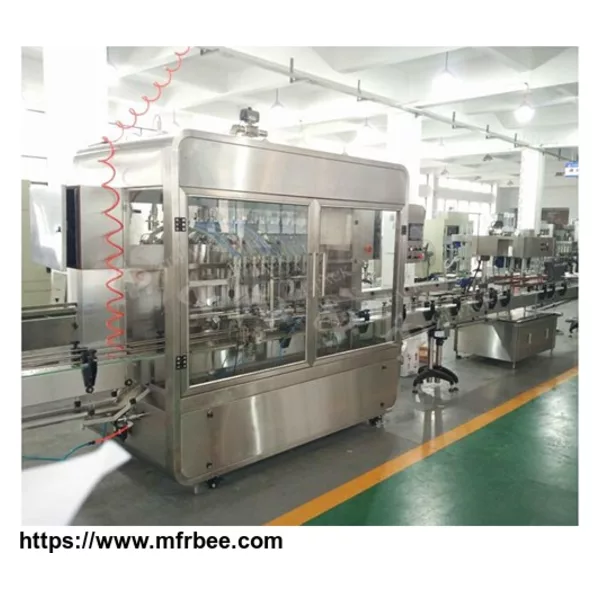

ZSP-16A automatic viscous bath kitchen cleaning liquid filling machine
Automatic linear piston filling machines is an extremely flexible piston fillers capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates. Widely used in food industry(e.g.,paste filling machine, butter filling machine, jam filling machine, ketchup filling machine, honey filling machine, edible oil filling machine, sauce filling machine etc); household product industry(e.g.,shampoo filling machine, liquid soap filling machine, liquid detergent filling machine, hand wash filling machine etc), personal care industry(e.g.,cream filling machine, lotion filling machine, gel filling machine, perfume filling machine etc); Chemical industry(e.g., grease filling machine, lubricant filling machine etc); pharmaceutical industry(e.,g ointment filling machine, e liquid filling machine etc).
Automatic linear piston filler is designed for completely automatic, multiple position, inline dispensing of liquids and pastes in volume ranging from 5ml to 5000m per cycle. Available in 2, 4, 6, 8, 10 and 12 nozzle configurations to match specific production requirements, Dual lane option is available to increase production by 100% while preserving valuable line space.
Linear piston liquid filling machinery is manufactured with a 304 stainless steel frame, It comes standard with PLC control and touch screen HMI ensuring reliable, repeatable control with minimal operator intervention, Precision bored, heavy-walled metering cylinders dispense product at accuracy up to +/- 0.5%, High-precision, servo motor driven screw movement faster and more precise than pneumatic system, food grade stainless steel and plastics for sanitary operations or use,anodized aluminum components, plus many more features available with motorized conveyor and indexing package for integrated container handling and positioning, No container/No fill feature detects missing or mispositioned containers to prevent waste and product spillage. Unique variable, separate speed control and actuator of a dual-stage fill provides precise "no spill" control for top-off applications or filling difficult products.
Key Features
Number of Fill Heads: 6,8,10,12.
Filling Size: up to 5000ml
Production rate 10-80Bottles/Min depends on liquid and bottles
Heavy-duty stainless steel constructed
Stainless steel Reservoir
Automatic Bottling Index kit with bottle counter
Pneumatic indexing gates (count in, count out)
Automatic product level sensing float system
Easily adjustable nozzle height settings accommodate vials to gallons
User friendly PLC controls with touch screen HMI
No bottle/No fill sensor
Bottle backup sensor (downstream) delays operation until jam is cleared
Able to output multiple doses per container for large containers
Easy clean stainless steel quick connect fittings
Drip Tray
Diving heads nozzles for bottom up filling to reduce foam
Neck grabbers for containers with small opening
