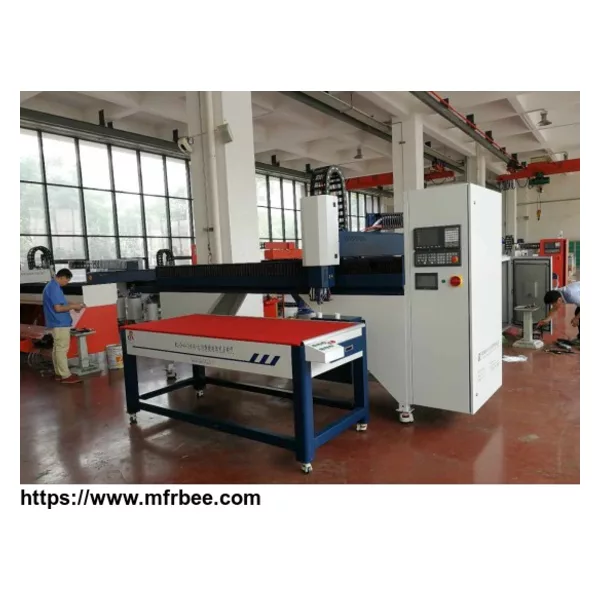

CNC standard foam sealing machine
Introduction:
The equipment adopts independent R&D system which possess digital control panel,
responsive and stable operation. The sealing strips' width are 5mm-20mm and
thickness is 3mm to 11mm. it mainly used for cabinets, distribution cabinet, electrical
cabinets, control cabinet, explosion-proof cabinet, switch cabinets, etc.
Advantages:
1. good adhesion, strong resilience and perfect jointing sealing strip.
2. low-cost raw material from home or board.
3.with smart, stable, precise, friendly CNC, PLC control system and human interface.
4. simple operation, economize on manpower and cost.
5. easy to maintain with compact design.
6. keep feeding precise and stable dispensing by self-developed valve control device.
Working environment:
Air-source: drying machine separates air, over 0.6MPA
power supply: three-phase five-wire system
power: approx. 4KW
usage environment: 0-40℃ in dry condition
LUOYANG RUICHUANG ELECTRICAL EQUIPMENT CO.,LTD
working platform
·Industrial aluminium profile
·sturdy, durable
·height adjustable
gluing mixing system
·self-developed stainless mixing head
·2-tier cooling and heating stainless glue tank
·auto-stirring refilling system.
·auto gas-refilling system
·alarm for glue low level
·barmag high precise metering pump.
auto feeding system
·raw material packed in the 50L metal barrel
·auto-pump to feed glue, simple operation and saving cost and time.
·the system can avoid the stratification of raw material
LUOYANG RUICHUANG ELECTRICAL EQUIPMENT CO.,LTD
CNC Intelligent system
·SYNTEC touch screen to monitor parameter of resin level and liquid level
·Japan servo motor
·With tech-programming function
·the intelligent simulation function helps preventing processing errors.
·the system interfaces with USB port which supports for mobile storage device
