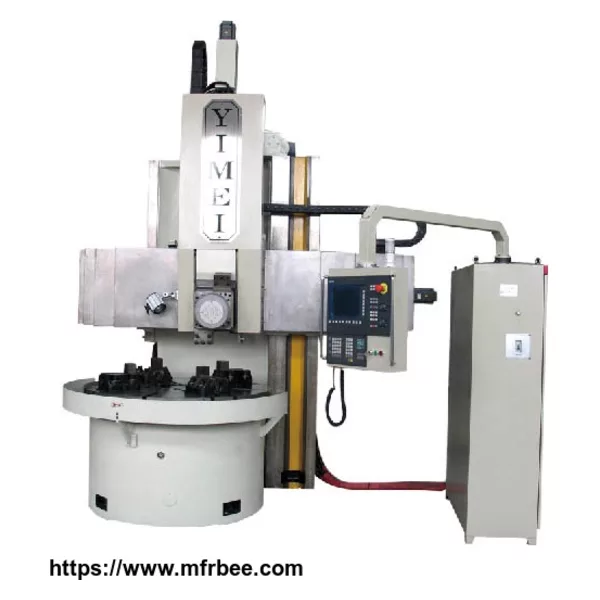

YM-CK5116Epro CNC Single-Column vertical lathe
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
YM-CK5116Epro数控单柱立式车床
1.该产品为专业设计的专业版，是市场销量巨大的改进产品。CK5112Epro和CK5116Epro采用相同的模块(相同的横梁断面、横梁滑座、旋转滑座、滑枕、伺服电机和伺服驱动器)，非常适合重载切割。
2.工作台具有防水功能，不必担心切削液渗入其中。方形工作平台的设计方便了切削液的收集。。
3.采用西门子802DSL系统(用户可指定其他系统);伺服电机和伺服驱动器均采用西门子产品。
4.光束导向面经超音频淬火处理(高于HRC50)，经久耐用;方滑枕采用球墨铸铁材料(QT600)，滑动面贴有软塑料带，可延长检修周期10年以上。
5.独立电控箱配有空调制冷，大大延长了电器部件的可靠性和使用寿命，便于维修和保养，不受机器振动的影响。
6.P3高精度丝杠，采用南京工艺或台湾HIWIN (P1最高，P6最低)生产，进口轴承支撑。
7.横梁由白钢保护，各润滑部位由自动润滑泵定时定量供油。
8.四级机变速+电机无级变速，恒功率范围广，扭矩大。
9.JB/T9934.1-1999数控立式车床精度检验执行
JB/T9934.2-1999数控立式车床技术规范
10.具有恒线速车削、螺纹切削等功能
11.低噪音、高回转精度的高精度传动齿轮(6级)和高精度螺旋锥齿轮(6级)。
12.所有铸件均采用HT300灰铸铁(冲压材料为球墨铸铁)，经过人工热时效处理、高质量加工和改进的装配工艺。所有功能部件和电气部件都是高质量的，具有高可靠性。
13.完整的配件配置允许用户只需准备好刀具和量具即可投入使用。完善的售后服务和2年质保服务。
14.选配:德国蜜卡诺按钮站、恒流静压导轨、油温冰箱、恒温冰箱、光栅闭环、加高床身、加长滑枕等。
