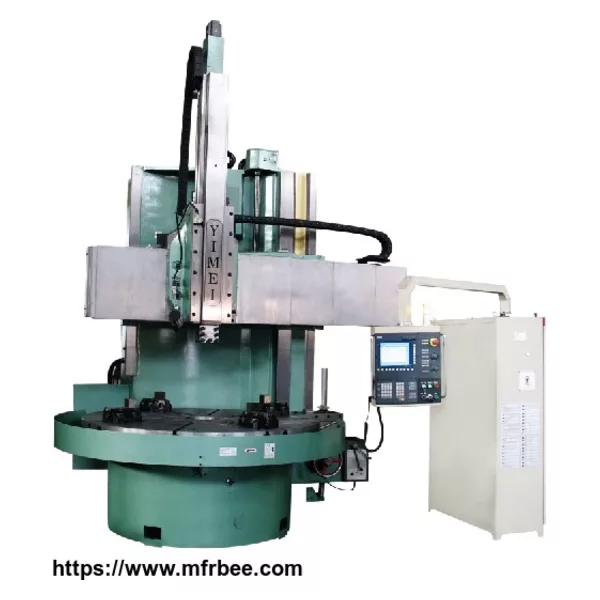

YM-CK5123Epro CNC Single-Column vertical lathe
1. The product is in Pro version with professional design, being an improved product with a huge market sales volume. CK5112Epro and CK5116Epro adopt the identical modules (identical beam
section, beam slide base, rotary slide base, ram, servo motor and servo driver) which are extremely suitable for heavy-load cutting。
2. The working
platform owns the function of waterproof and it is not necessary to worry that cutting fluid infiltrates into it. The design of square shaped working platform facilitates the collection of cutting
fluid.。
3. Siemens 802DSL system (user can appoint other system) is adopted;servo motor and servo driver all utilize Siemens products.
4. Beam
guiding surface is conducted with supersonic frequency quenching treatment (higher than HRC50) with the characteristics of durable service;the square ram adopts ductile
iron material (QT600) while the sliding surface is sticking with the soft plastics belt, which can prolong more the overhauling period for over 10 years.
5. The independent electric cabinet is equipped with air conditioner for refrigerating, which prolongs the reliability and service life of the electric parts significantly, facilitates repair and maintenance, and is free from the influence of machine vibration.
6. P3 high-precision lead screw produced by Nanjing Process or Taiwan HIWIN (P1 is the highest and P6 is the lowest degree), and imported bearing support.
7. The beam is protected by the white steel, and all the lubrication parts are supplied with certain amount of oil by the automatic lubricating pumps regularly.
8. Four-grade machine variable speed + motor stepless variable speed, wide range of constant power and large torque.
9. JB/T9934.1-1999 precision inspection of
CNC vertical lathe is performed
JB/T9934.2-1999 technical specification of CNC vertical lathe
10. Owning constant line speed turning, cutting thread and other functions
