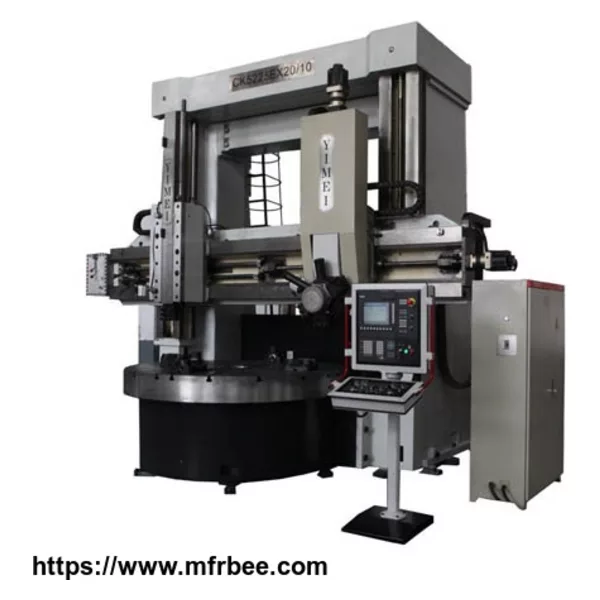

CK5225E Double Column CNC Vertical Lathe

Place Of Origin
China
Minimum Order
1
Packaging
N/A
Delivery
15 Days

CK5225E双柱电脑数值控制(Computer Numerical Control)立式车床

1.该系列产品采用模块化设计,功能可任意选择。产品设计成熟可靠,因此有大量用户选择。2.100%全手动操作功能,普通操作人员也能操作,不用担心因不会编程而无法操作机床。另外,方便实用。3.工作台采用四步机械+大功率DC电机无级调速(可选择交流变频),实现大扭矩旋转,并具有恒线速转弯功能。4.优秀的铸件(HT300)通过热老化处理。5.光束导轨经超音频感应淬火处理,采用滚滑复合型。立式刀架采用方形滑枕(QT600-3),可实现重切削。滑动面采用粘塑处理,经久耐用。6.横梁导轨、滑枕导轨、立柱导轨采用自动润滑泵,自动定时定量润滑。7.滚珠丝杠采用南京工艺或台湾海文P3级高精度,丝杠采用进口轴承(德国INA)支撑。8.导轨可分为静压导轨和纯静压导轨两种。动静压承重10吨;纯静压采用恒流供油,承重16-20吨。9.具有独立的液压站,便于调整、维修和保养。10.精度执行JB/T9934.1-1999《数控立式车床精度试验》和JB/T9934.2-1999《数控立式车床技术条件》11.高标准的加工和组装工艺确保了完美的产品质量。12.高精度变速齿轮(6级)和高精度螺旋锥齿轮(6级齿轮分级)具有低噪音和高旋转精度的特点。13.是公司自主研发的。14.可选功能:恒流静压、光栅闭环、机床和滑枕加高、螺纹切削功能等。
