Plain weave
Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
Characteristics: square aperture ,high flow through , relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 63 µm.
Twilled weave:
Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both(warp and weft) is mostly the same.
Palin dutch weave Dutch twilled weave:
Also known as Plain Filter Cloth its weave pattern is the same as plain weave, but the weft wires are of smaller diameter than the warp wires. The wires are woven tightly together resulting in a
small triangular opening. This weave produces a strong cloth.
Dutch twilled weave:
Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, as in a normal Twill Weave, except the warp wires are larger in diameter than the weft wires. This
allows a greater mesh count in the weft direction. This weave pattern enables the weft wires to be woven more densely, and much smaller aperture sizes can be achieved without forsaking cloth
thickness.
you can try screen with to get through more products
We supply wedge wire screen nozzles in both ss 304 and 316L. Wedge Wire Screen ( Screen Nozzle), 304 Stainless Steel Size OD: 114.3X158 L X 191 mml Wedge wire: 1.5 W X 2.5 H Slot:0.2MM, open area of 11.76% Connection: 3\" BSP Material: SS 304 Flow: 8M3/H TO 15 M3/H MAX. ...

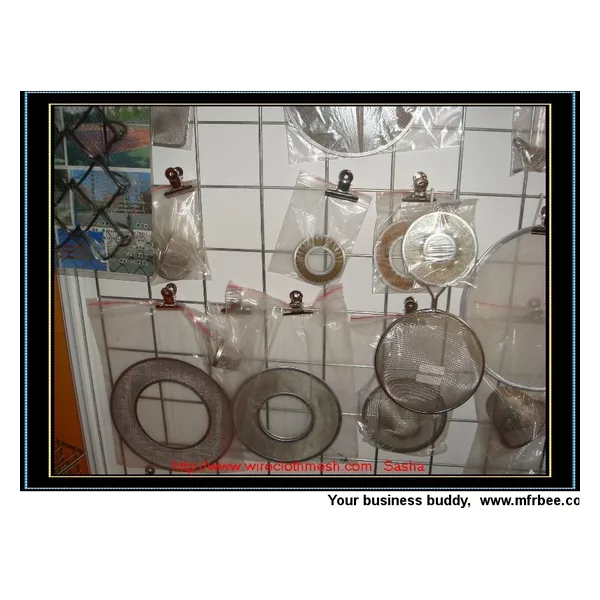

Woven Mesh and Sintered Mesh Pack Screen Filter Elements Pack Filters of stainless steel mesh woven and sintered mesh sheet: Circles, belt, square or rectangular shape, for Rubber and Plastic industries Extrusion The pack filter is made of stainless steel woven wire mesh discs, ...
Disc Type Filter Screen for Thermoplastics Extrusion Circular and Annulus filter disc Extruder Screens of Stainless Steel, Brass, Copper and Other metals Disc Filter Screen is also known as Circular Extruder Screen which serves the purpose for extremely thin and fine extrusion ...
