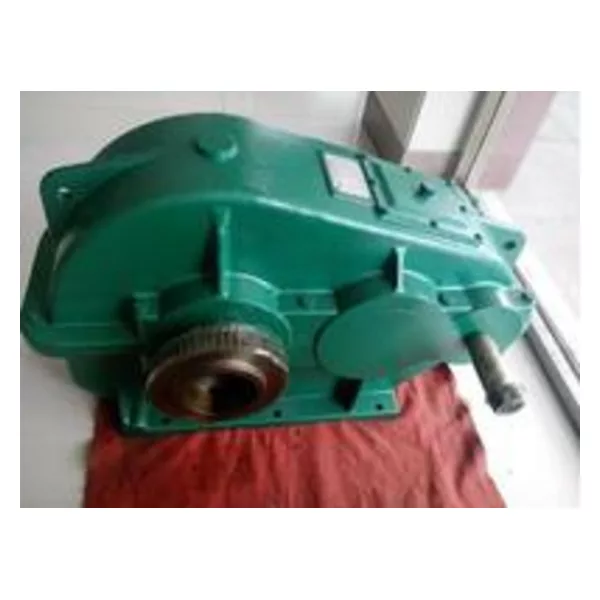

New power transmission and low cost crane gearbox

New power transmission and low cost crane gearbox

Cylindrical gear box Gear reducer are widely used in metallurgy, mining, lifting, transportation, cement, construction, chemicals, textiles , printing and dyeing, pharmaceutical and other fields. The following shows scope of application of gear reducer:

1.Speed of High-speed Shaft is less than 1500r/min.

2.Speed of Circle of rotation gear is less than 20m/second.

3.The working environment temperature is 40-45 °C. If it less than 0 °C, lubricating oil should be preheated heating temperature more than 0 °C before working.

4.High transmission rate: single-stage more than 96.5%, dual-stage more than 93 %, three more than 90 %.

5.Smooth running, low noise.

6.Small Cubage, light weight, long working-life and high load-bearing capacity.

7. Easy to dismantle, and easy to install.

Technical data:

1,output torque:282-29654(N.m)

2,rated power:0.3-543.4(kw)

3,input speed:≤1500 (rpm)

4,output speed:12-187.5(rpm)

5,transmission ratio:8-50

6,series:2

7,install form:

8,Model no. :JZQ/ZQ(250-1000)

Features:

1. Slow than a wide range, nominal ratio 10-200,

2. Mechanical transmission efficiency high, secondary, tertiary, da big 96%; 94%,

3. Smooth running, low noise,

4. Due to the 42CrMo, quenching and tempering treatment by forging 35CrMo respectively, making the gear axis and gear, so long service life, high bearing capacity,

5. Easy to overhauling, easy to install.

Applicable condition:

1. Gear circumference speed is not more than dedicated 16m/s,

2. No greater than high-speed shaft speed 1000r/min,

3. Working environment temperature of 40-45 ° C,

4. Can be both the positive and negative direction operation.

If you need any other style needs, please don't feel trouble direct contact with me.
