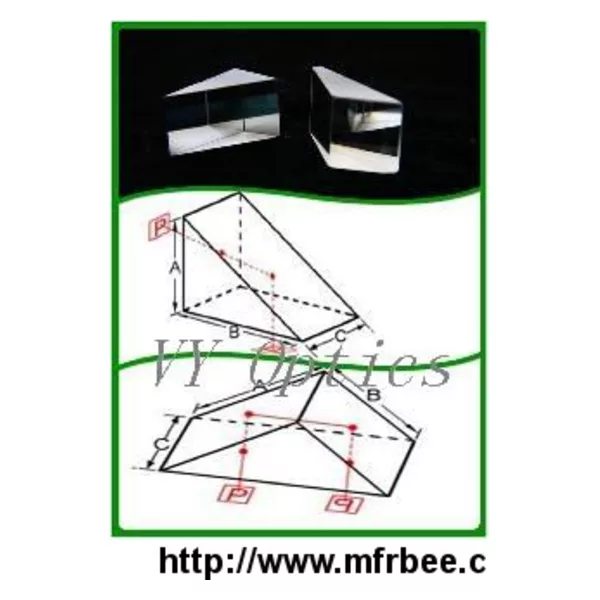

Optical right angle prism equilateral prism

Place Of Origin
China
Packaging
as request
Delivery
15 Days

Rectangular prisms(right angle prism) are used to deflect a beam of light through 90 or 180 degrees. This can be used as component to create various optical devices. BK-7 can be used for a range between the visible and infrared light. fused-silica an be used for a range between ultraviolet and infrared light. VY Optics Photoelectric Technology Co.,Ltd. offers a wide range of different materials and different degree of precision prisms.

Specification of our right angle prism as follow:

*Material:BK7 glass or UV grade fused silica

*Dimension Tolerances:+/-0.1mm

*Angle Tolerance:+/-3’or 30”

*Clear Aperture:90%

*Surface Quality:60/40 or 20/10

*Surface Flatness:λ/8 or λ/4 @633nm

*Chamfer:0.3+/-0.1mm

*Coating Optional
