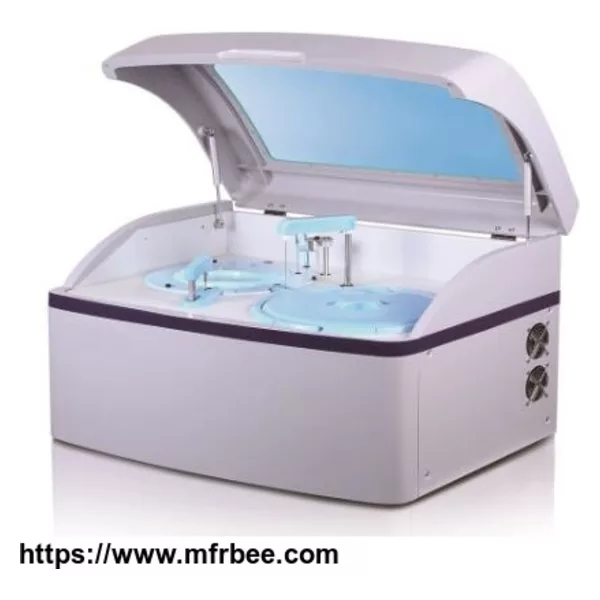

Clinical Full Automatic Biochemistry Analyzer (YJ-180)

Specification:
Throughput constant 180 T/h or 300T/h,best for middle or small size hospital
Closed integrated photovoltaic systems, no mechanical parts,maintenance free
Minimum reaction volume is 150ul,cost saving
Discrete,random access,automatic
Random choice of method, the real discrete automatic chemistry analyzer
This automatic chemistry analyzers have gained a lot of national patents during the researching.
Analyze Unit1. Throughput: constant 180 T/h, 81 reaction cuvette positions,multi-channel testing together.
2. Minimum reaction volume is 150μl, cost saving.
3. Determined by the sample sequence, inserted at any time emergency.
4. Heating method: Direct thermal solid thermostat closed.Optical Unit1. Closed integrated photovoltaic systems, no mechanical parts,maintenance free.
2. Light Source:Halogen-tungsten lamp;
3. Lifetime≥2000 h.
4. 8 Wavelength,support single or dual wavelength.Reagent Unit1. 60 reagent positions.
2. Automatically detect the amount of reagent remaining, displayed in real time the remaining amount of reagent.
3. 15ml, 20ml, 30ml, 50ml or 70ml reagent bottle. Dead volume <1.0 ml.
4. Support for single and double reagent, reagent completely open.
Internal barcode reader (option).Sample Unit1. 60 sample positions.
2. Testing according setting,random access.
3. Real time display of testing status.
4. Internal barcode reader (option).Reagent/Sample handing Unit1. Intelligent liquid detection & collision protection (Red light: collision; Blue light: detection of the liquid).
2. Reagent volume: 2 ~ 500μl,step by 1μl .
3. Probe cleaning:automatically washing for both inside and outside,carry over0.1%.
4. Automatically dilute and retest.Calibration and quality control Unit1. Linear curve type:Single-point linear,two-point linear and multi-point linear.
2. Nonlinear curve type:Logit-4p,Logit-5p,polynomial,factor.
3. Automatically use best calibration curve and standard.
4. Quality control chart:L-J,Westgard TwinPlot,Cumulative.Operation Unit 1. Operation system: Windows XP/Office 2000,interface is intuitive and operate it easily, arbitrary operating authority;No restrictions on the amount of time and storage, permanent preservation of various types of data, automatic storage and backup.
2. Can print the contents of any custom;Offers a variety of print formats.
3. Help and operation guide on line in English.
4. No restrictions on setting test parameters.
5. Unique password for user management,rational allocation of user rights.
6. Real time display of testing status,the remaining amount of reagent,testing status ,reaction curve and the test progress.
7. Real time display of reaction plate temperature.
RS-232 standard interface,support for the hospital network, print reports remotely.
Others1. Temperature:10-30 degree
2. Humidity:less than 70%.
3. Try to avoid strong light.
4. Floor level up:less than 1/200.
5. Barometric:86.0kPa-106.0kPa.
6. Power Supply:AC 220V±22V 50Hz±1 Hz.
7. Water consumption:less than 6L/h.
8. Frequency:550 VA.
9. Dimension:782mm×581mm×545mm
10. Weight:60kg
Test projects1. ALT,AST,TP,ALB,TBIL,DBIL,ALP,r-GT,CHE,TBA,5-NT
2. UREA,CR,UA,TCO2
3. CHOL,TG,HDL,LDL,ApoA,ApoB,LPa
4. AMY,LIP
5. GLU,GSP
6. CK,CK-MB,a-HBDH,LDH,MB
7. CRP,RF,ASO

Model	YJ-180
Analyze Unit	Throughput	Constant 180T/h (non-ISE)
Theory	Absorption spectrometry, transmission turbidimetry
Methodology	End-point \Fixed-time\Kinetic\Ion selective electrode
Test according set up, random access	Reaction plate	Contain 81 reaction cuvettes
Maximum reaction time	15 minutes
Minimum reaction volume	150 ul
Material of cuvettes	Special UV-transparent optical glass
Cuvettes use	Automatically cuvettes washing
Optical Unit	Light Source	Halogen-tungsten lamp
Photometer	Reversed optics
Wavelength	340nm-900nm wavelength option
Absorption	0-4 Abs
Reagent Unit	Reagent plate	60 reagent positions ,support for single and double reagent, reagent completely open
Reagent storage temperature	2~10 degree
Reagent bottle	15ml, 20ml, 30ml, 50ml or 70ml ,dead volume is less than 1.0 ml
Reagent volume	20-500 ul, step by 1.0 ul
Reagent/Sample Probe	Automatically checked ;Patent technology liquid level detection;Collision protection probe cleaning:Automatic washing for both inside and outside.
Sample Unit	Sample plate	60 sample positions
Sample type	Human (animal) serum \plasma\urine etc.
Samples cup	Support one-off micro cups
Sample volume	2-100 ul, step by 0.1 ul
Sample/reagent probe	Automatically checked ;Patent technology liquid level detection;Collision protection probe cleaning:Automatic washing for both inside and outside.
Temperature control Unit	Heating method	Direct thermal solid thermostat closed
Temperature equilibrium time	<3 minutes
Reaction temperature	37 ±0.1 degree
Temperature fluctuation	±0.1 degree
Operation Unit	Software	WindowsXP \2000
Database	SQL Server
Data Storage	Automatic store & copy; No time and volume limit; Lifetime preservation
Print format	Can be set up, offer several standard format
Calibration mode	Linear curve type: Single-point linear, two-point linear and multi-point linear none linear; Curve type: Logistic-Log 4P,Logistic-Log5p,Spline,index automatically use best calibration curve and standard
Quality control methods :	Real time, within day & between day
Quality control diagram	L-J \cumulative\twin plot
Status display	Real time monitoring of reagent residual volume .Running status of reagent tray, samples tray
Adjustment	Dynamic and real time display of running status; Intelligent carry over settings to adjust test sequence; original reaction data record; Detail profile of alert messages
Setting	Operation permission setting, Item setting, cross pollution setting, cuvette blank setting
Others	Water consumption : < 6L/h	Power Supply :AC 220V±22V 50Hz±1Hz
Frequency :Maximum 600VA	Dimension :782mm×581mm×545mm
Net Weight : 60kg	Accessory :Software
