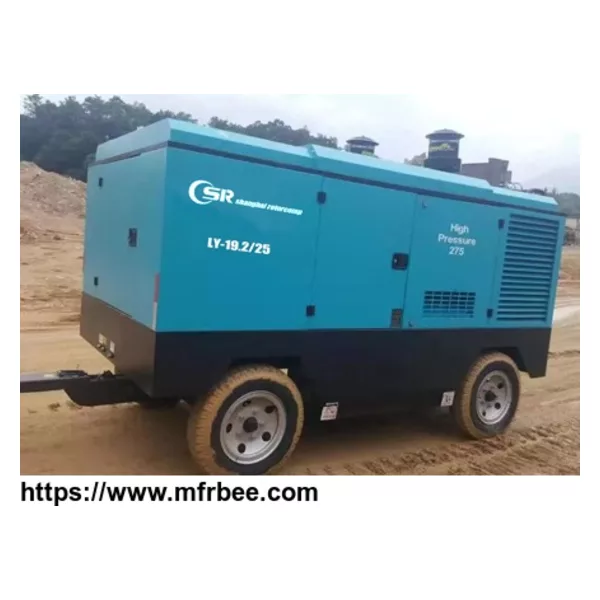

The most efficient wheeled Diesel screw compressor
Advantages of Diesel Portable Screw Compressor:
1. two-stage screw block is patented;,
2. Designed for a maximum pressure of 40 bar;
3. Two-stage compression; Deutz, Cummins, and Yuchai World well-known engines
4. SKF bearings, direct drive, no noise gears;
Application of Diesel Portable Screw Compressor:
Shanghai rotorcomp diesel /Movable screw air compressor are widely used in mines, water conservancy, transportation, shipbuilding, urban construction, energy, industry and other
industries.
Products Details of Diesel Portable Screw Compressor
1.Diesel powered portable screw air compressor: power: 37-300kw, air delivery: 26m3/min, exhaust pressure: 2.2MPa, 6 categories
2.Air end: large diameter rotor, air end connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engines’, more
longer lifespan
3.Diesel engine: select the diesel engine of DEUTZ, COMMINS and YUCHAI brand, satisfy the emission requirement of Europe, low oil consumption, after sale service system all over the
China
More features of shanghai rotorcomp diesel portable air compressors for sale:
1. A high-efficiency cooling system
ensures the compressor operates in the optimum operating mode. There are independent oil, water and air cooling systems. Equipped with a fan of a larger diameter, adapted for a cold and hot
climate.
2. Triple filtration of air
The patented cyclone air pre-filter, which filters more than 90% of dust and impurities, increases the service life and the replacement of the air filter by 5 times. The cyclone air filter
filters residual dust and protects the compressor, the filter cartridge allows safe maintenance of the air filter without stopping the compressor. This system provides continuous operation in desert
conditions or large dustiness.
3. Low temperature starting system (option)
The coolant from the engine into the heat exchanger. The fuel pump from the tank into the combustion chamber, which ignites. At the same time, heat transfer takes place continuously, which
increases the temperature of the coolant and oil, as well as the temperature of the compressor itself. This ensures the start of the diesel engine in the frost or in the highlands.
4. Additional cooler (option)
Shanghai rotorcomp also provides a compressed air temperature at the outlet of 15 degrees less than the ambient temperature.
-
Triple oil cooling system from compressed air
Reduces the oil content in the oil separator with unstable oil supply. Always saves the amount of oil in the exhaust compressed air no more than 3 ppm. Clean air is necessary for the safe
operation of equipment in which compressed air is used.
-
Microprocessor control system
The simple and convenient interface of the microprocessor control system allows you to monitor the speed during operation, compressed air pressure, oil pressure, outlet air temperature,
coolant temperature, fuel level and other parameters. Has the functions of self-diagnosis, alarm and stop. Simple management ensures safe operation without the participation of personnel. An
additional option is a remote network monitoring system that allows monitoring the operation of compressors remotely.As professional diesel air compressor manufacturer, we also produce many kinds screw compressor, oil free compressor for sale
