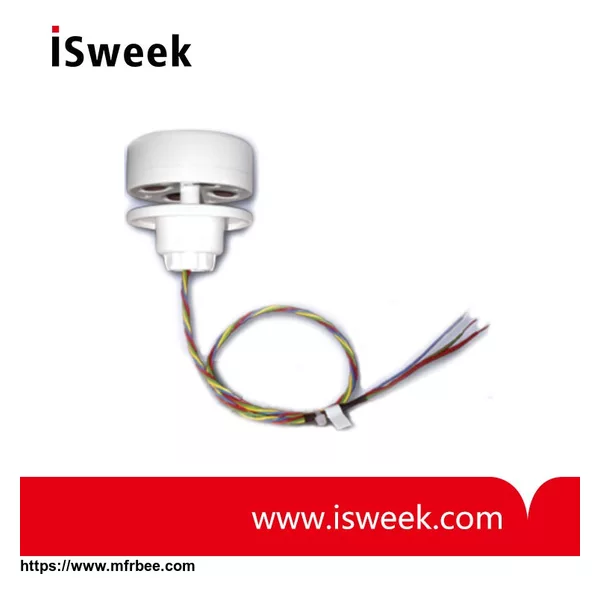

CV7-OEM Ultrasonic Wind Speed Sensor Description
CV7-OEM shows the same features as the CV7 standard: light, compact and low energy consumption.
With this OEM version of the Static Wind Transducer CV7, you can add an accurate Ultrasonic Wind Sensor to your own products and installations. It is powered by 8-30 VDC power supply and it outputs
RS232/RS422/NMEA0183 signal.
CV7-OEMUltrasonic Wind Speed Sensor Specification:
Output data format | NMEA0183, MWV, XDR |
Information transmited | Instant. W. Speed, Instant. W. Angle, avaibility |
Output rate | 2 Hz / 30 Hz measurement │ *4 Hz / 60 Hz meas. |
Wind module sensitivity | 0.12 m/s |
Wind module resolution | 0.05 m/s |
Wind module dynamic | 0.12 to 40 m/s |
Direction sensitivity | +/-1.5° |
Direction resolution | 1° |
Power supply | 8 V to 30 V DC |
Electrical consumption | 9 mA |
Op. temp. without icing | -15° C to +55° C |
Cable | 50 cm / 4x0.22 mm2 |
Connection | 4 wires |
Weight of the head | 100 gr |
Weight of unit assembly | N/A |
Mounting | N/A |
