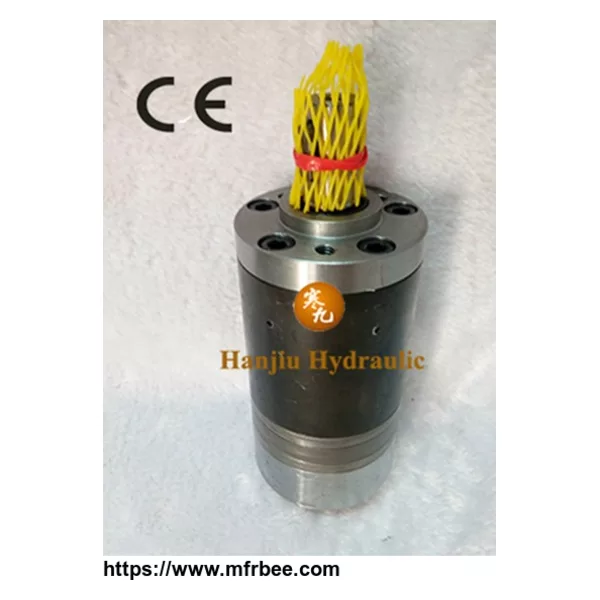

Orbital Hydraulic Motor Bmm-8/Bmm-12
Product Quick Detail
- Place Of Origin
- China
- FOB Price
- USD $65.00 / Piece
- Minimum Order
- 1
- Packaging
- wooden case or others
- Delivery
- 15 Days
Specifications
BMM Hydraulic orbit motors
BMM series motor are small volume,economical type,which is designed with shaft distribution flow, which adapt
the Gerotor gear set design and provide compact volume,high power and low weigth.
Characteristic features:
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.
Main specification
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
|
Max Torque (N*M) |
rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
|
Max speed (kw) |
rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Max pressure drop(MPa) |
rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
