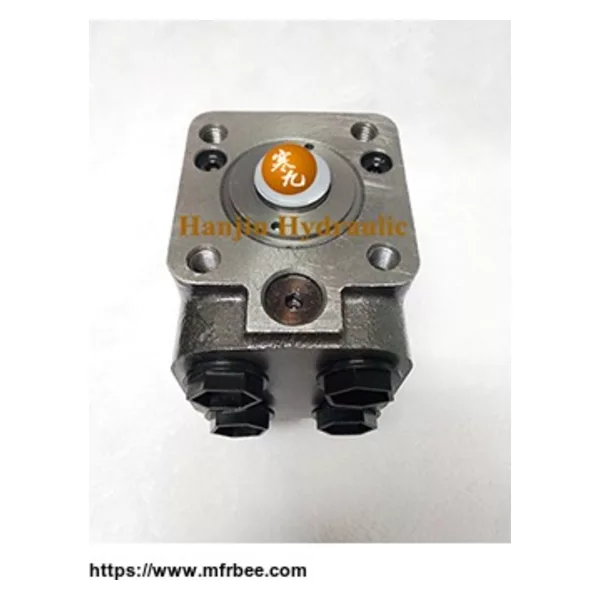

060 Hydraulic Steering Unit

This is Hanjiu Hydraulic from Shijiazhuang Hanjiu Technology Co.,Ltd,we mainly produce Hydraulic orbitrol steering. Our orbitrol steering can widely used for kinds of Agricultural equipments like:Agricultural harvesters,tractors for John Deere,New Holland,Case,Class,JCB etc. Our Hydraulic steering unit can replace Danfoss,Eaton,M+S,Parker,White series 1. Our Hydraulic orbitrol steering can replace Danfoss,Eaton,M+S,Parker,White seriesGood day for you. Displacement: 80/100/125/160/200/400/500/630/800/1000 cc

Product Description

060 integral series power steering units
060 series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.

Features
Incorporated five valves into the PSU, So it is more compact and convenient
Low hydraulic noise
Special casting design for low pressure drop.
3 basic systems-open center, closed center and load sensing
Displacement: 50~500 ml/r

Main specification data
Max. System pressure --------16MPa
Max. Back pressure -----------2.1MPa
Input torque--------------------1.7~2.5Nm
Max. System operating temperature--------93º C
Recommended oil filtration--------ISO 19/16

Function of the incorporated valve
Inlet safety valve: Limits maximum pressure drop across the PSU to protect the steering circuit.
Cylinder port shock valve: Protects hoses against pressure surge created by ground forces on the cylinder axle.
Anti- cavitation valve: Protects steering circuit against vacuum (cavitation) conditions.
Inlet check valve: Prevents oil from returning through the PSU when pressure on the cylinder side is greater than the inlet side. It prevents steering wheel kick.
Internal check valve: Converts the PSU to a hand operated pump for limited manual steering.

Hydraulic steering unit applications:

Construction Machinery

Agriculture Machinery

Heavy-Duty Equipment

Forestry Machinery

Mining Equipment
