Drilling Tools Replaceable Sleeve Stabilizer
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Description

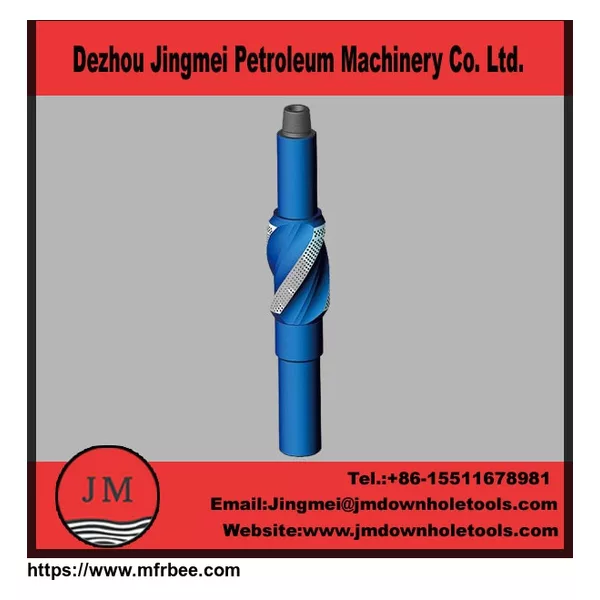

Replaceable Sleeve Stabilizer
Replaceable sleeve stabilizer consists of mandrel and sleeve.The function is the same as spiral integral blade stabilizer.
It can suit to different hole size and increase working life by changing the different size sleeve.
The sleeve is threaded on the mandrel,so the sleeve can be fasten to the mandrel tightly and changed easily.
|
Working outside diameter OD mm（inch） |
Salvage diameter OD mm（inch） |
The upper end Thread |
Lower end Thread |
Hole ID mm（inch） |
Neck length mm（inch） |
Total length mm（inch） |
Remarks |
|
149.2 （5 7/8） |
120.7 (4-3/4) |
NC38 | NC38 | 50.8(2) | 559(22) |
1372 (54) |
Drill string type |
| 3 1/2REG | Bottom hole type | ||||||
|
152 （6） |
120.7 (4-3/4) |
NC38 | NC38 | 50.8(2) | 559(22) |
1372 (54) |
Drill string type |
| 3 1/2REG | Bottom hole type | ||||||
| 215.9（8-1/2） |
165 (6-1/2) |
NC50 | NC50 |
71.4 (2-13/16) |
686（27） | 1676（66） | Drill string type |
| 4 1/2REG | Bottom hole type | ||||||
| 311.15（12-1/4） | 203(8) |
6-5/8 REG |
6-5/8 REG |
71.4 (2-13/16) |
610（24） | 1550（61） | Drill string type |
| Bottom hole type | |||||||
| 444.5（17-1/2） | 229(9) |
7-5/8 REG |
7-5/8 REG |
76.5(3) | 686（27） | 1702（67） | Drill string type |
| Bottom hole type | |||||||
|
660.4 (26) |
241.3 (9 1/2) |
7-5/8 REG |
7-5/8 REG |
76.5(3) | 660（26） | 1930（76） | Drill string type |
| Bottom hole type | |||||||
| 711.2（28） |
241.3 (9 1/2) |
7-5/8 REG |
7-5/8 REG |
76.5(3) | 686（27） | 1981（78） | Drill string type |
| Bottom hole type |
Packaging & Delivery
- Packing :According to customer requirements
- Minimum Order :1 pieces
- Supply Ability :600 sets/year
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas,Emerging Markets,European Union
- Founded Year:2004
- Address:Highway East Road,Economic Development Zone,Dezhou
- Contact:ya mingdu
