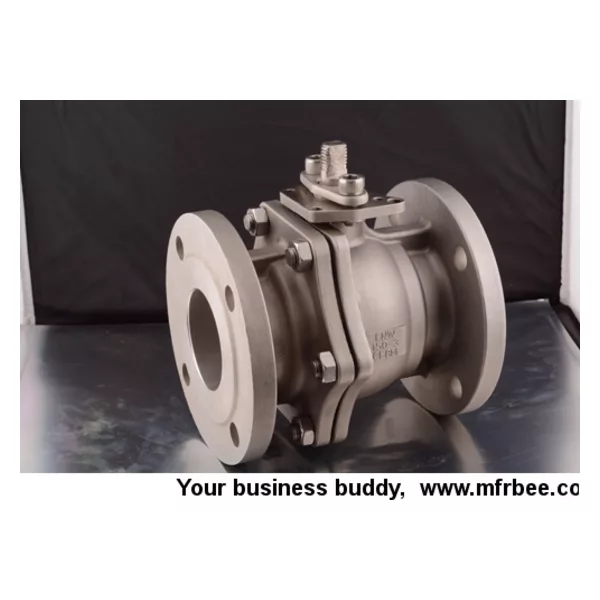

FLANGED BALL VALVE

Place Of Origin
china
Packaging
plywood case
Delivery
30 Days
 (F2F15/30/60) 150-600lbs Floating Ball Valve with ISO5211 Mounting Pad Measures 1/2 to 12 inches, Investment casting body and cap
Key Specifications/Special Features:
 。Design and manufacture:ASME B16.34,API608
 。Test and inspection:API598
 。Face to face dimension:ANSI B16.10
 。End flange dimension:ANSI B16.5
 。Fire safe: API607 4th Edition (optional)
 。Blow-out froof stem
 。Anti-static debices for ball-stem-body (optional)
 。Locking device and handle indicating open/close (optional)
 。Investment casting body and cap
 。Pressure:150lbs,300lbs,600lbs
 。Size: 1/2 to 12 inches
 。Full port
 。Materials:CF3M,CF8M,CF8,WCB,A105,F316L,F304L,F316,F304
 。Operation: hand lever, gear ,pneumatic and electric actuator
