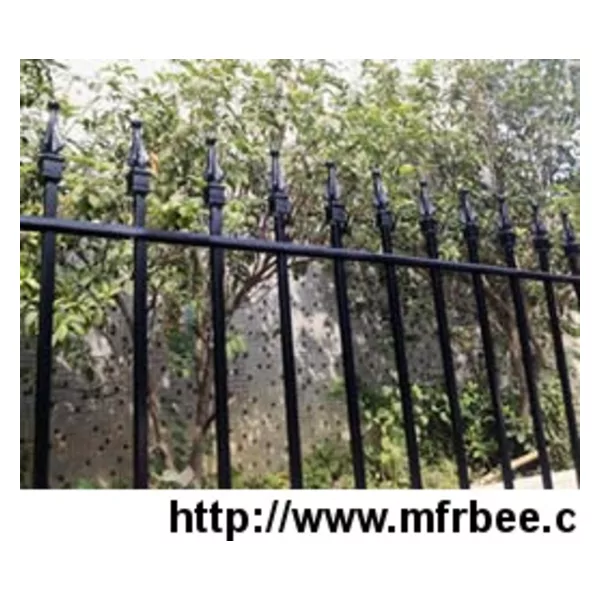

Rod top fence panels with extended rod tops
Rod top fence panel, with extended square rod tops as its name implies, provides a traditional old world look of wrought iron yet much higher rust and corrosion resistance. Meanwhile, these panels are considered as the best choice if you want some decorative finials, rings or butterfly scrolls to be added.
These panels are suitable for securing schools, estates, backyards, factories and pools, etc. It can be manufactured with two or three horizontal rails with straight or staggered tops as shown in the pictures
Details:
Rod top fence panel patterns
Material: hot dipped galvanized steel material (complying with ASTM A787-G90).
Construction: welded or component fence panels.
Finish: four layer of coating including zinc coating (H.D), zinc phosphate, Epoxy coating and polyester powder coating from inside to outside.
Distance A: 3-1/2" or 4" from the first rail to the top.
Distance B: 8-1/2", 11" or 9-1/2" from the second rail to the top.
Distance C: 2" from the bottom of pickets to the ground.
Picket spacing: 3-15/16" or 3-3/4".
Specification:
Rod top fence panel specification | |||||||||
---|---|---|---|---|---|---|---|---|---|
Pickets | rails | Posts | Height | Length | Distance A | Distance B | Picket spacing | Application | |
RTFP-1 | 5/8" × 18ga | 1-1/4" × 15/16" × 14ga | 2" × 2" × 16ga | 3', 3.5', 4', 5' or 6' | 8' | 3-1/2" | 8-1/2" | 3-3/4" | Residential |
RTFP-2 | 3/4" ×14ga | 1-1/2" ×1-1/2" × 14ga | 2-1/2" × 2-1/2" × 14ga | 7' or 8' | 8' | 4" | 9-1/2" | 3-15/16" | Commercial |
RTFP-3 | 3/4" × 18ga | 1-1/2" ×1-1/2" × 14ga | 2-1/2" × 2-1/2" × 16ga | 3', 3.5', 4', 5' or 6' | 8' | 4" | 9-1/2" | 3-15/16" | Commercial |
RTFP-4 | 1" × 14ga | 1-3/4" × 1-3/4" × 14ga | Different according to heights | 3', 3.5', 4', 5', 6', 7' or 8' | 8' | 8" | 9-3/4" | 17-3/4" | Industrial |
RTFP-5 | 1" × 16ga | 1-3/4" × 1-3/4" × 14ga | Different according to heights | 3', 3.5', 4', 5', 6', 7' or 8' | 8' | 8" | 9-3/4" | 17-3/4" | Industrial |
Rod top fence panels are ideal for protecting plants.
Rod top fence panels go well with various finials.
Finials can be installed at the top of rod to decorate the fence.
