Material Lifting Hoist Single Girder Gantry Crane Design
Product Quick Detail
- FOB Price
- USD $3,000.00 / Piece
- Place Of Origin
- Henan
- Minimum Order
- 1
- Packaging
- as exported standard
- Delivery
- 15 Days
Specifications

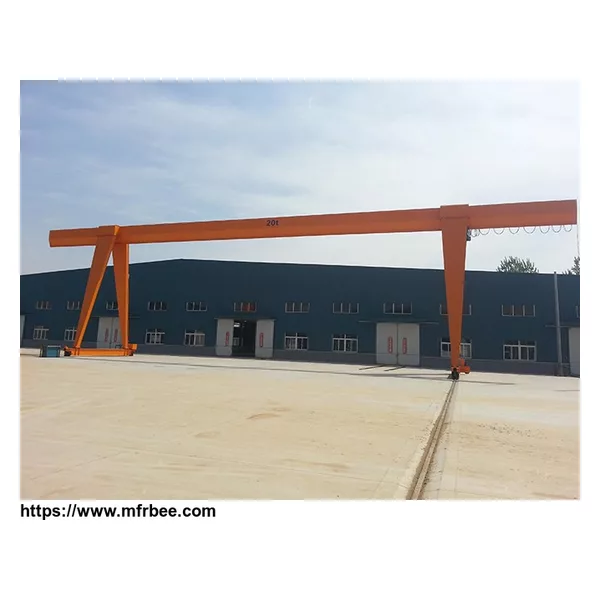

MH single girder gantry crane is a kind of track traveling mid light type crane, the capacity of crane from 3T to 32T, the span of crane from 8m to 35m, is equipped with CD, MD type electric hoist and widely used in indoor warehouse, outdoor store yard, plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment
Our products are be sold to more than 30 Chinese provinces and cities, and have exported our cranes to Australia, Vietnam, India, Thailand, the United States, Pakistan, Egypt, Philippines, Malaysia, Singapore, Malta, Turkmenistan, Saudi Arabia, Peru, Ethiopia and other countries. EOT crane manufacturerWe provide oversea sales, installation, service and repair for all our customers world wide.
MH single girder gantry crane consists of bridge structure, support legs, traveling mechanism, electric hoist and electric equipment. The bridge structure and support legs adopt steel welded box type, strong and stable, compact structure, large strong lifting capacity. The Gantry crane has three Control methods: Pendent line with press button, Cabin control, Remote control.
Feature
1. Work duty: A3 ~A6
2. Operation way can be choice: cabin control, remote control or pendant on the ground.
3. Box-shape main beam, strong and stable, long service life
4. Large lifting capacity, low headroom, small wheel-pressure, stable operation
5. Pass strict test, low cost maintenance, Beautiful appearance
6. Especially suitable for the task of loading and unloading long and bulk material and steel, pipes
7. Can be used together with other lifting appliance for special purpose.
Safety system
Weight overload protection
Top quality bearing polyurethane buffer
Traveling limit switch
Lifting limit switch
Voltage lower protection function
Emergency stop system
Current overload protection system
Please leave your message,We will contact you soon!
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:
- Founded Year:2014
- Address:Crane Industrial Park ,Xinxiang City
- Contact:Alex Wang
