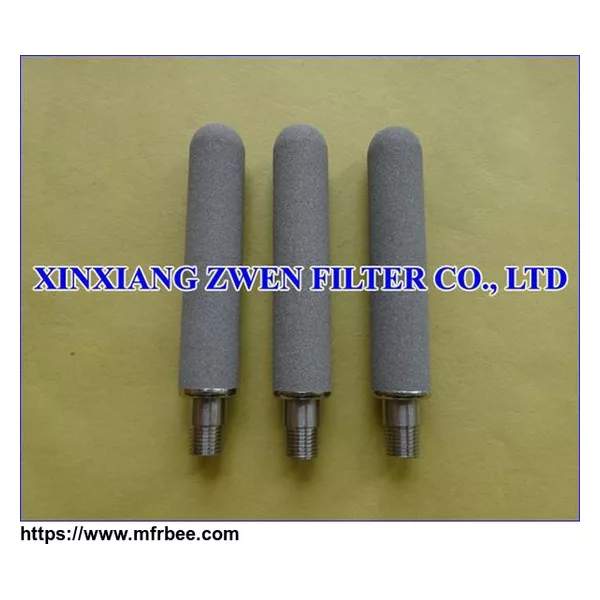

Ti Filter Cartridge

Ti Filter Cartridge Feature

1. Ti filter cartridge is made from ti powder particle

2. Ti filter cartridge is sintered in a high temperature vacuum furnace. So ti powder particle won’t shed

3. Ti filter cartridge is surface filtration and depth filtration

4. Ti filter cartridge has narrow pore size distribution

5. Ti filter cartridge is suitable for food industry and medicine industry (GMP) because ti is an in-noxious metal and an inert metal

6. High dirt holding capacity

7. Good porosity

8. High filter rating accuracy

9. The effect of filtration is good

10. High filter efficiency

11. Good permeability

12. Pressure loss is low in filtration process

13. High flow rate at low differential pressure

14. High compression strength

15. Good mechanical strength

16. Good abrasion resistance

17. Good durability against most liquids, gases and aggressive steam

18. High temperature resistance

19. High corrosion resistance

20. Backwash

21. Washable and Cleanable

22. Reusable

23. Long service life

Ti Filter Cartridge Technical Data

Raw Material: Ti

Filter Rating: 0.22-100 Microns

Operation Temperature:≤300℃

Outside Diameter: 12 mm, 25 mm, 30 mm, 50 mm, 60 mm, 65 mm, 80 mm, 90 mm, 100 mm

Length: 254 mm, 508 mm, 762 mm, 1016 mm or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector:

1. DOE

2. 220

3. 222

4. 226

5. Thread (NPT,BSP,G,M,R)

6. Flange

7. Special customization

Application

1. Steam filtration

2. High temperature liquid filtration

3. High temperature gases filtration

4. Catalysts powders recovery

5. Precoat support filtration
