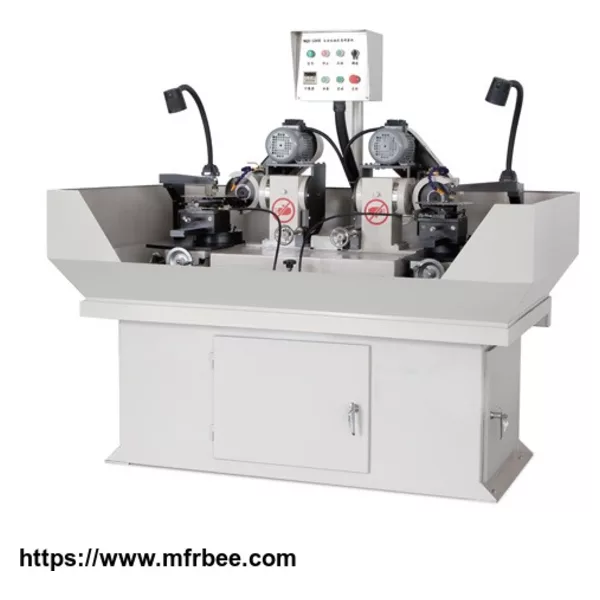

KTMQH-500B Automatic Double Shaft Back Angle Grinding Machine
Product Quick Detail
- Place Of Origin
- Jiangsu
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Machine features
● The machine is used for grinding of carbide circular saw blade angle after special equipment.
● Designed for single-axis milling, console with cross carriage adjustment, easy to operate.
● The machine uses a unique mechanical transmission, without any pneumatic and hydraulic parameters set clear, easy to operate.
● There are three speed polishing rate can be arbitrarily set according to the required precision.
● The abrasive 20 teeth per minute, accuracy ≤0.05mm, high accuracy, low power consumption, high stability and low maintenance costs.
Technical date at a glance
| Outer diameter | ф80 — ф500mm |
| Bore diameter | ф12-ф50mm(Special specifications can be customized) |
| Tooth pitch | 8—70mm |
| Front Angle of tooth | -5°—＋30° |
| Back Angle of tooth | 0°— 30° |
| Top Surface Angle on tip | ±45° |
| Working speed | 10 —30(T/min) |
| Diamond wheel | ф150×ф16×5mm |
| Diamond wheel grit | 180# 220# (Recommended) |
| Total power | 2.2KW |
| Voltage | 380V (Phase four-wire) |
| Net weight | 1000kg |
| Dimensions | 1800×1180×1730mm |
