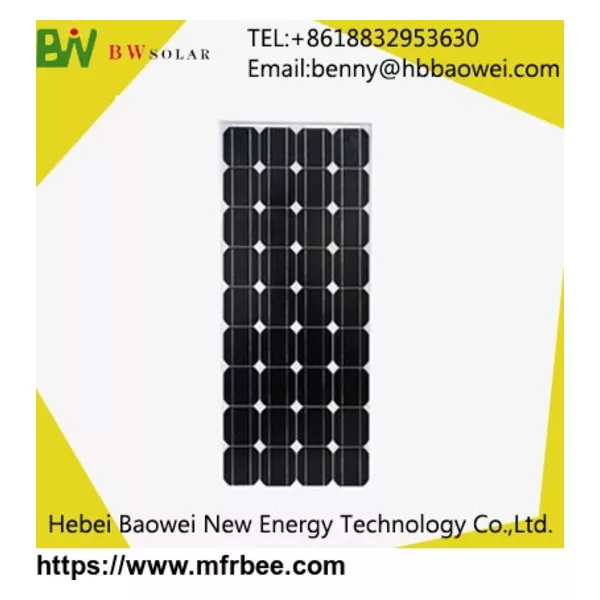

BAOWEI-150-36M Monocryslline Solar Module
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Quick Information
- Brand Name:Baowei
- Place of Origin:China
- Model Number :01
- Material :Monocrystalline Silicon
- Max. Power :18.18V
- Number of Cells :36 (4*9)
- Size :1480*680*35mm
- Tempered Glass :3.2mm
- warranty :25 years
- application :for solar system
- power tolerance :±3%
- frame :anodized aluminium alloy
Description
BAOWEI-150-36M Monocryslline Solar Module
| Mechanical Data | |
| Cell type | Mono156mm*156mm |
| No. cells | 36 (4*9) |
| Size | 1480*680*35mm |
| Weight | 11.6kg |
| Electrical Data | ||||
| (STC: Irradiance 1000w/m², module temperate 25℃, AM=1.5) | ||||
| Power | 135w | 145w | 150W | 155w |
| Max. power voltage (Vmp) | 18.18V | 18.18V | 18.18V | 18.18V |
| Max. power current (Imp) | 7.43A | 7.98A | 8.26A | 8.43A |
| Open circuit voltage (Voc) | 21.6V | 21.6V | 21.6V | 21.6V |
| Short circuit current (Isc) | 8.17A | 8.78A | 9.08A | 9.38A |
| Power Tolerance | ±3% | |||
| Normal Operating Cell Temp(NOCT) | -40/+85℃ | |||
| Tem compensation coefficient | -（0.45±0.05）%/ ℃ | |||
| Tem of ISC | (0.065±0.015)%/ ℃ | |||
| Tem of VOC | -（80±10）mv/℃ | |||
| Tempered Glass | 3.2mm |
