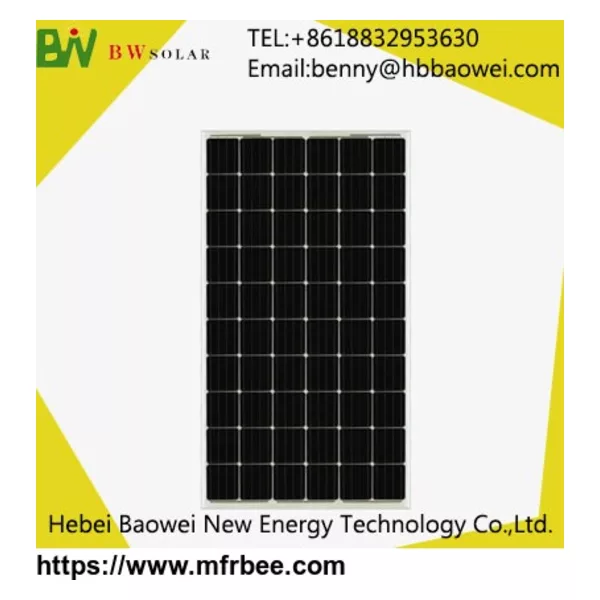

BAOWEI-300-310-72M Monocryslline Solar Module
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Quick Information
- Brand Name:Baowei
- Place of Origin:China
- Model Number :05
- Material :Monocrystalline Silicon
- Max. Power :36.25V
- Number of Cells :72 (6*12)
- Size :1956*992*40mm
- warranty :25 years
- application :for solar system
- frame :anodized aluminum alloy
- power tolerance :±3%
- tempered glass :3.2mm
Description
BAOWEI-300-310-72M Monocryslline Solar Module
| Mechanical Data | |
| Cell type | Mono156*156mm |
| No. cells | 72 (6*12) |
| Size | 1956*992*40mm |
| Weight | 24.5kg |
| Electrical Data | ||||
| (STC: Irradiance 1000w/m², module temperate 25℃, AM=1.5) | ||||
| Power | 280w | 290w | 300w | 310W |
| Max. power voltage (Vmp) | 36.25V | 36.25V | 36.25V | 36.25V |
| Max. power current (Imp) | 7.73A | 8A | 8.28A | 8.56A |
| Open circuit voltage (Voc) | 43.8V | 43.8V | 43.8V | 43.8V |
| Short circuit current (Isc) | 8.5A | 8.8A | 9.1A | 9.4A |
| Power Tolerance | ±3% | |||
| Normal Operating Cell Temp(NOCT) | -40/+85℃ | |||
| Tem compensation coefficient | -（0.45±0.05）%/ ℃ | |||
| Tem of ISC | (0.065±0.015)%/ ℃ | |||
| Tem of VOC | -（80±10）mv/℃ | |||
| Tempered Glass | 3.2mm |
Packaging & Delivery
- Minimum Order :100 pc
- Supply Ability :100mw per year
- Country: China (Mainland)
- Business Type: Manufacturer,Distributor/Wholesaler
- Market:Africa,Americas,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year:2015
- Address:Gucheng Industrial Zone, Xingtai, Hebei, Longyao
- Contact:yanqianggao
