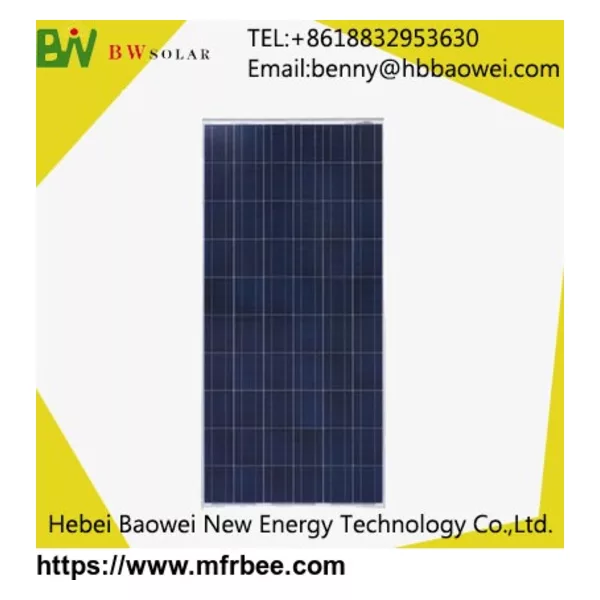

BAOWEI-100-36M Monocryslline Solar Module
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Quick Information
- Brand Name:Baowei
- Place of Origin:China
- Model Number :07
- Material :Monocrystalline Silicon
- Max. Power :18.17V
- Number of Cells :36 (4*9)
- Size :1196*541*35mm
- warranty :25 years
- application :for solar system
- frame :anodized aluminum alloy
- power tolerance :±3%
- tempered glass :3.2mm
Description
BW-100-36M Monocryslline Solar Module
| Mechanical Data | |
| Cell type | Mono125mm*125mm |
| No. cells | 36 (4*9) |
| Size | 1196*541*35mm |
| Weight | 7.8kg |
| Electrical Data | |||
| (STC: Irradiance 1000w/m², module temperate 25℃, AM=1.5) | |||
| Power | 90w | 95w | 100W |
| Max. power voltage (Vmp) | 18.17V | 18.17V | 18.17V |
| Max. power current (Imp) | 4.96A | 5.23A | 5.51A |
| Open circuit voltage (Voc) | 21.6V | 21.6V | 21.6V |
| Short circuit current (Isc) | 5.45A | 5.76A | 6.06A |
| Power Tolerance | ±3% | ||
| Normal Operating Cell Temp(NOCT) | -40/+85℃ | ||
| Tem compensation coefficient | -（0.45±0.05）%/ ℃ | ||
| Tem of ISC | (0.065±0.015)%/ ℃ | ||
| Tem of VOC | -（80±10）mv/℃ | ||
| Tempered Glass | 3.2mm |
Packaging & Delivery
- Minimum Order :100 pc
- Supply Ability :100 mw per year
- Country: China (Mainland)
- Business Type: Manufacturer,Distributor/Wholesaler
- Market:Africa,Americas,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year:2015
- Address:Gucheng Industrial Zone, Xingtai, Hebei, Longyao
- Contact:yanqianggao
