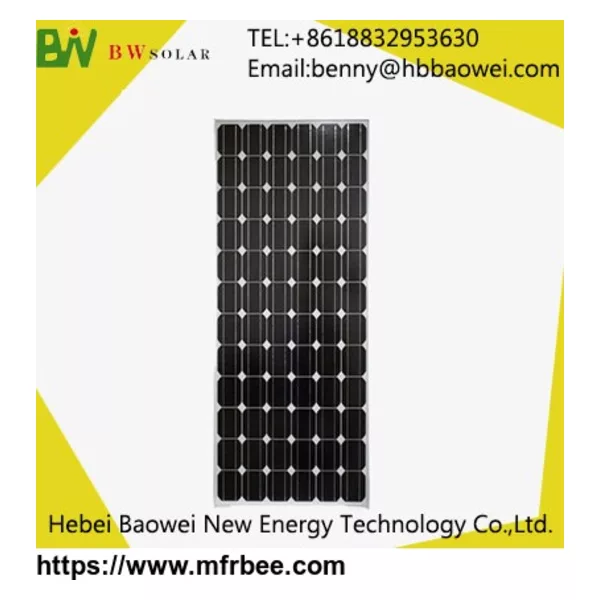

BAOWEI-80-36M Monocryslline Solar Module
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Quick Information
- Brand Name:Baowei
- Place of Origin:China
- Model Number :010
- Material :Monocrystalline Silicon
- Max. Power :18.2V
- Number of Cells :36 (4*9)
- Size :1200*540*25mm
- warranty :25 years
- application :for solar system
- frame :anodized aluminum alloy
- power tolerance :±3%
- tempered glass :3.2mm
Description
BaoWei-80-36M Monocryslline Solar Module
| Mechanical Data | |
| Cell type | Mono125mm*125mm |
| No. cells | 36 (4*9) |
| Size | 1200*540*25mm |
| Weight | 6.8kg |
| Electrical Data | |
| (STC: Irradiance 1000w/m², module temperate 25℃, AM=1.5) | |
| Power | 80W |
| Max. power voltage (Vmp) | 18.2V |
| Max. power current (Imp) | 4.45A |
| Open circuit voltage (Voc) | 21.4V |
| Short circuit current (Isc) | 4.88A |
| Power Tolerance | ±3% |
| Normal Operating Cell Temp(NOCT) | -40/+85℃ |
| Tem compensation coefficient | -（0.45±0.05）%/ ℃ |
| Tem of ISC | (0.065±0.015)%/ ℃ |
| Tem of VOC | -（80±10）mv/℃ |
| Tempered Glass | 3.2mm |
