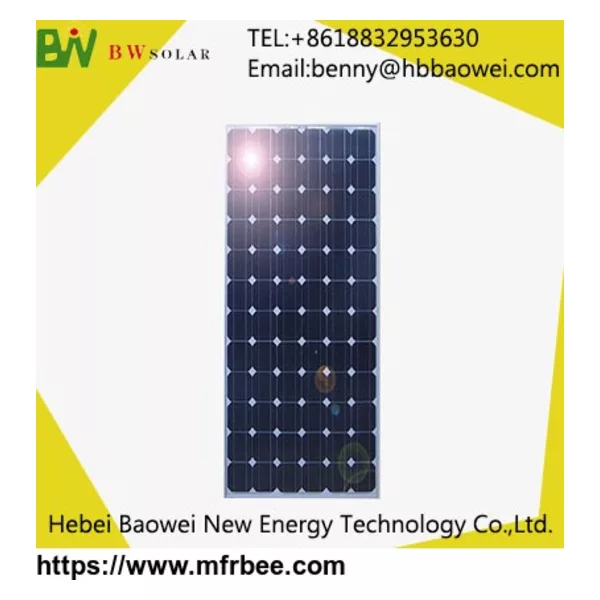

BAOWEI-170-200-72M Monocryslline Solar Module
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Quick Information
- Brand Name:Baowei
- Place of Origin:China
- Model Number :012
- Material :Monocrystalline Silicon
- Max. Power :36.26V
- Number of Cells :72 (6*12)
- Size :1580*808*50mm
- warranty :25 years
- application :for solar system
- frame :anodized aluminum alloy
- power tolerance :±3%
- tempered glass :3.2mm
Description
BaoWei-170-200-72M Monocryslline Solar Module
| Mechanical Data | |
| Cell type | Mono125mm*125mm |
| No. cells | 72 (6*12) |
| Size | 1580*808*50mm |
| Weight | 16.3kg |
| Electrical Data | ||||
| (STC: Irradiance 1000w/m², module temperate 25℃, AM=1.5) | ||||
| Power | 170w | 180w | 190W | 200w |
| Max. power voltage (Vmp) | 36.26V | 36.26V | 36.26V | 36.26V |
| Max. power current (Imp) | 4.69A | 4.97A | 5.24A | 2.52A |
| Open circuit voltage (Voc) | 43.2V | 43.2V | 43.2V | 43.2V |
| Short circuit current (Isc) | 5.15A | 5.46A | 5.77A | 6.07A |
| Power Tolerance | ±3% | |||
| Normal Operating Cell Temp(NOCT) | -40/+85℃ | |||
| Tem compensation coefficient | -（0.45±0.05）%/ ℃ | |||
| Tem of ISC | (0.065±0.015)%/ ℃ | |||
| Tem of VOC | -（80±10）mv/℃ | |||
| Tempered Glass | 3.2mm |
Packaging & Delivery
- Minimum Order :100 pc
- Supply Ability :100 mw per year
- Country: China (Mainland)
- Business Type: Manufacturer,Distributor/Wholesaler
- Market:Africa,Americas,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year:2015
- Address:Gucheng Industrial Zone, Xingtai, Hebei, Longyao
- Contact:yanqianggao
