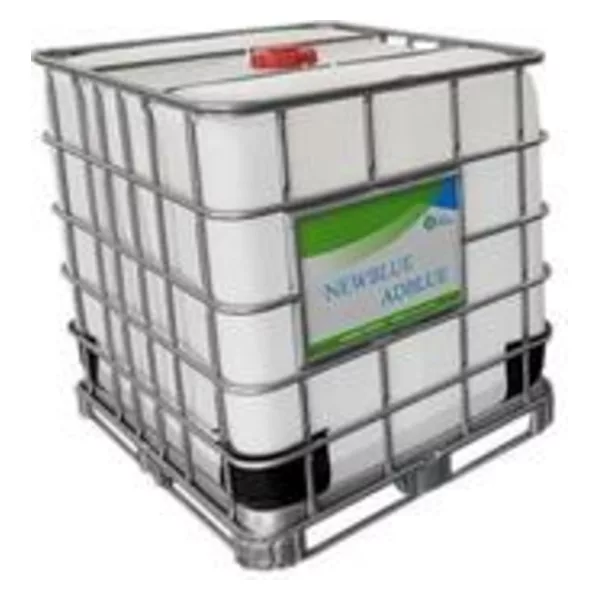

Urea Solution 1 Ton IBC tank

Technical data of Urea Solution1Ton IBC tank

Brimful Capacity 1060 (Liter)
Nominal Capacity 1000 (Liter)
Length 1200 (mm)
Width 1000 (mm)
Height with pallet 1145 (mm)
Filling opening 150 (mm)
Discharge opening 50 (mm)
Fork opening 100 (mm)
Label plate 2 (piece)
Corner Protector 4 (piece)
Weight Inner container 15.5, 16.5(kg)
Total Weight (approx) 58(kg)
Outer frame: The round pipe, together with the bottom pallet and the top tie (together with the support), forms a square grid box with a marking plate with product instructions.
Followed by the installation of a marker plate.
Material: Grid/Bottom Pallet: Steel, galvanized
Corner: 4 pieces made of high-density polyethylene
Inner container: A square blown container made of high-density polyethylene with a filling port in the center of the top of the container.
The bottom of the front is equipped with a discharge port. Contains anti-aging UV-resistant UV plastic particles.
Material: high-density polyethylene, true color
Filling mouth: Nominal diameter 150 mm, with the external thread, sealed with the threaded cover, with 2-inch, sealed inner cover, seal and seal with exhaust.
Material: Nominal diameter 150 Thread cap: High-density polyethylene (HDPE), red O-ring: Thermoplastic elastomer (TPE)
2-inch sealed inner cover: Polypropylene (PP)
2-inch inner cover O-ring: ethylene copolymer (EBA), true color
Exhaust device: silicone rubber
Discharge port: 50 mm diameter thread ball valve, with a red handle and safety protection ring. The valve outlet is sealed with polyethylene foil composite film. The valve is opened with a screw cap and a polyethylene wafer and a flat gasket. Including takeover.
Material: Ball Valve Body: High-Density Polyethylene (HDPE), Black
Flat sealing gasket: EPDM (EPDM)
Spherical Seal: Tetrafluoroethylene Copolymer (ETFE)
Nominal Diameter 50 Thread Cap: High-Density Polyethylene (HDPE), Black
Threaded Flat Seal Gasket: Foamed Polyethylene (PE)
Polyethylene Wafer: High-Density Polyethylene (HDPE), Red
Discharge to take over: high-density polyethylene (HDPE), character
Tray: Steel frame tray (1000mmx 1200 mm), 4 in
Nameplate: before and after the installation of a label plate, size: 500mm * 380mm
Material: steel, galvanized
Heavy metals: heavy metals (lead, cadmium, hexavalent chromium and mercury) in the packaging do not exceed 100pp
Availability: Immediately used for filling
UN Dangerous Goods Transportation Mark: UN 31HA1
