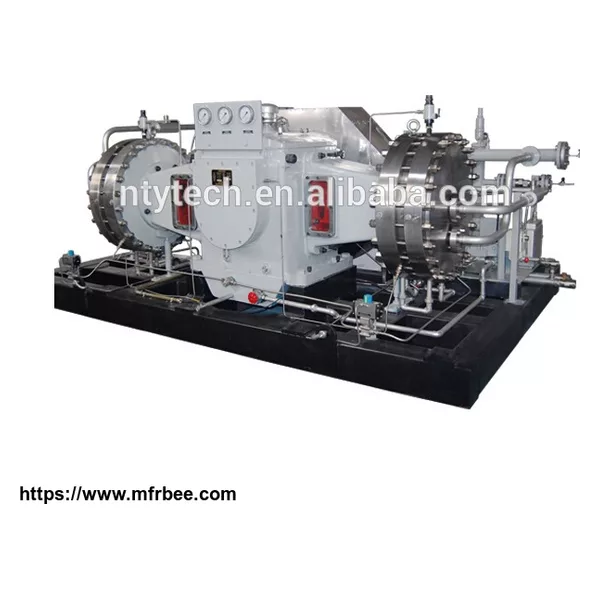

High Pressure 30MPa Gas Diaphragm Compressor

Main Technical Data

Model: GD-190/16-300

Volume Flow: 190Nm3/h

Inlet pressure: 1.6MPa

Outlet pressure: 30MPa

Cooling water consumption: 5000L/h

Motor power: 55KW

Size: 3500*2300*1500mm

Weight: 780KG

Features:

1. This D type diaphragm compressor has compact design and large size.

2. Structure type: D Type(2, 3 or 4 cylinders)

3. Lubrication mode: Forced lubrication

4. Cooling mode: water cooling

* Suitable compression media: high-purity gas, inert gas, flammable and explosive gas, toxic gas, and other special gases.
* Air pressure and discharge pressure mentioned here refer to indicator value.
* Anybody who will choose or enquiry about our products, please provide the following necessary information aobut your requirement: suction pressure, discharge pressure, volume flow, compression media, related requirements. When used for special compression media, you should also need to provide us the data of its element and physical and chemical properties values.

Diaphragm compressor is widely used in food industry, oil industry, chemical industry, electronics industry, nuclear power plants, aerospace, military equipment, medicine, scientific research and other fields due to its excellent performance characteristics. Its specific applications include flammable, oxidizing, toxic and radioactive gas; cylinder filling; gas mixing and stirring system; gas transporting; filling and unloading of piping car; processing system of chemical and petrochemical gas; gas used for processing electronics, gas, semiconductor and optical fiber manufacturing; the pressurization and gas storage of one-stop gas generating system; the pressurization of gas recovery system; storage system of high pressure gas; hydrogen system of the power plant; hydrogenation system; leaching system of supercritical fluid and solvent; R&D and etc.
