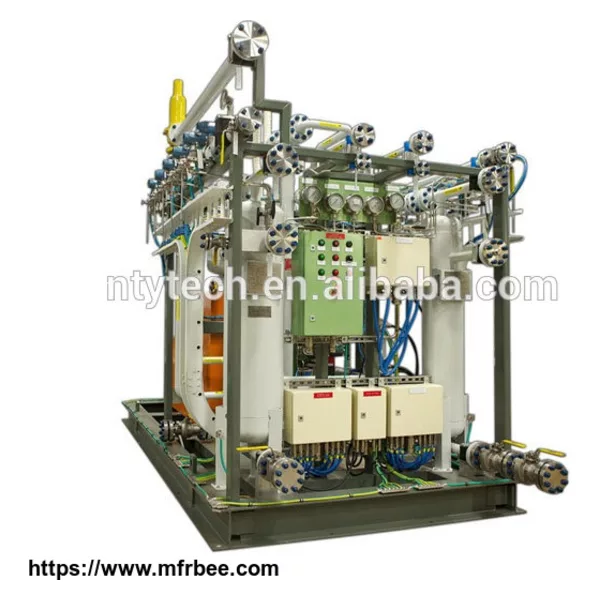

Coal Bed Gas Diaphragm Compressor with Membranes

FOB Price
$8,000 - 80,000
Place Of Origin
China (Mainland)
Configuration
Stationary
Brand Name
New Tianyuan
Weight
1500KG
Ertification
SGS
Lubrication Style
Oil-less
Minimum Order
1
Type
Diaphragm
Power Source
AC Power
Dimension(L*W*H)
1530*750*1350mm
Voltage
380V
Warranty
1 Year
Model Number
GZ-40/4-35
Packaging
Exportable seaworthy polywood box
Delivery
30 Days

Coal Bed Gas Diaphragm Compressor with Membranes

Main Technical Data

Model: GZ-40/4-35

Cooling water consumption: 1.5t/h

Columetric flow rate: 40Nm3/h

Inlet pressure: 0.4Mpa

Outlet pressure: 3.5Mpa

Size: 1530*750*1350mm

Weight: 1.5t

Power: 11kw

Features:

1. Suitable compression media: high-purity gas, inert gas, helium gas, flammable and explosive gas, toxic gas, and other special gases.
2. Air pressure and discharge pressure mentioned here refer to indicator value.
3. Anybody who will choose or enquiry about our products, please provide the following necessary information aobut your requirement: suction pressure, discharge pressure, volume flow, compression media, related requirements. When used for special compression media, you should also need to provide us the data of its element and physical and chemical properties values.
