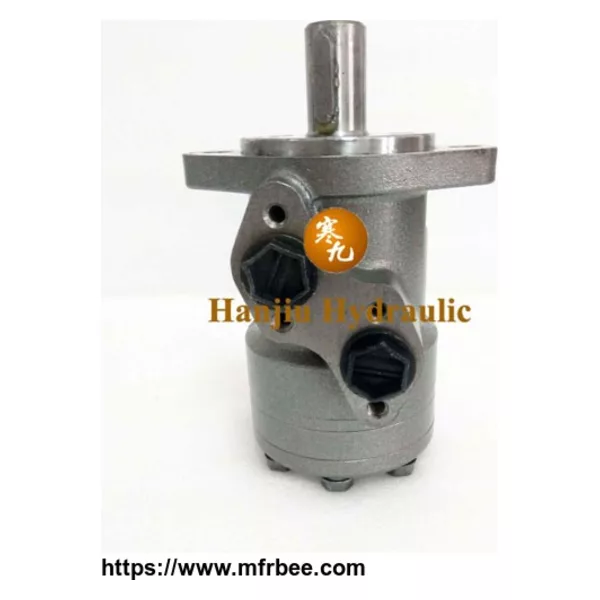

BMP Hydraulic Orbit Motor

Place Of Origin
China
FOB Price
USD $50.00 / Piece
Minimum Order
1
Packaging
wooden case or others
Delivery
15 Days

Hydraulic Orbit Motor BMP


BMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.
Characteristic Features:
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or series.
* Advanced construction design, high power and low weight.

Technical data for BMP with 31.75 and 32 shaftt:
Type BMP
BMPH
36
BMP
BMPH
50
BMP
BMPH
80
BMP
BMPH
100
BMP
BMPH
125
BMP
BMPH
160
BMP
BMPH
200
BMP
BMPH
250
BMP
BMPH
315
BMP
BMPH
400
BMP
BMPH
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 460 475 490 430
int. 76 128 186 227 290 370 440 570 555 580 560
peak 96 148 218 264 360 434 540 670 840 840 780
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 6
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 7
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 14 12 9.5 7
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 14 11.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 13
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
