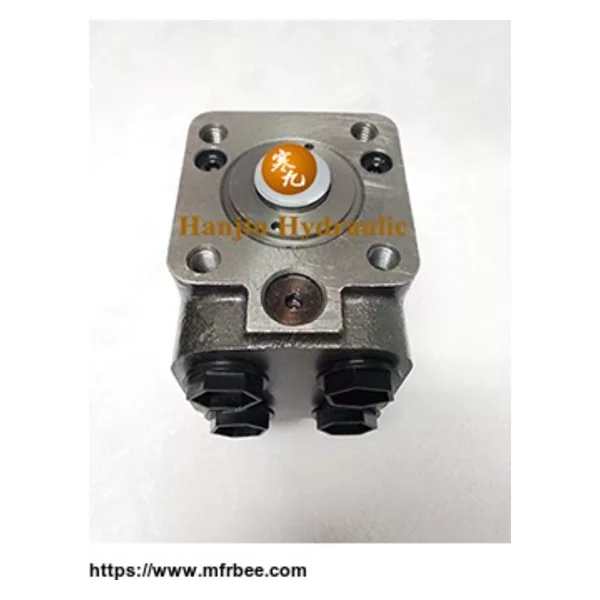

060 Hydraulic Steering Unit

This is Hanjiu Hydraulic from Shijiazhuang Hanjiu Technology Co.,Ltd,we mainly produce Hydraulic orbitrol steering. Our orbitrol steering can widely used for kinds of Agricultural equipments like:Agricultural harvesters,tractors for John Deere,New Holland,Case,Class,JCB etc. Our Hydraulic steering unit can replace Danfoss,Eaton,M+S,Parker,White series 1. Our Hydraulic orbitrol steering can replace Danfoss,Eaton,M+S,Parker,White seriesGood day for you. Displacement: 80/100/125/160/200/400/500/630/800/1000 cc

Product Description

060 integral series power steering units
060 series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.

Features
Incorporated five valves into the PSU, So it is more compact and convenient
Low hydraulic noise
Special casting design for low pressure drop.
3 basic systems-open center, closed center and load sensing
Displacement: 50~500 ml/r

Main specification data
Max. System pressure --------16MPa
Max. Back pressure -----------2.1MPa
Input torque--------------------1.7~2.5Nm
Max. System operating temperature--------93º C
Recommended oil filtration--------ISO 19/16
